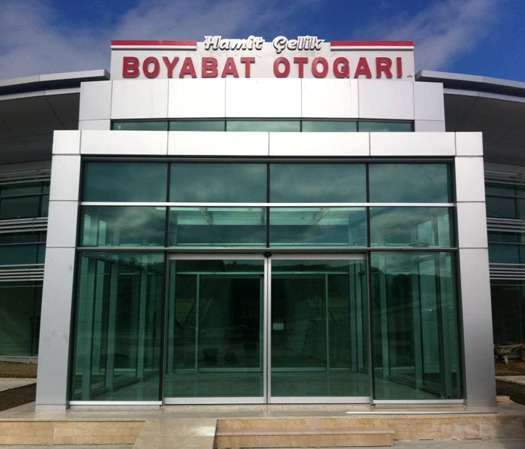

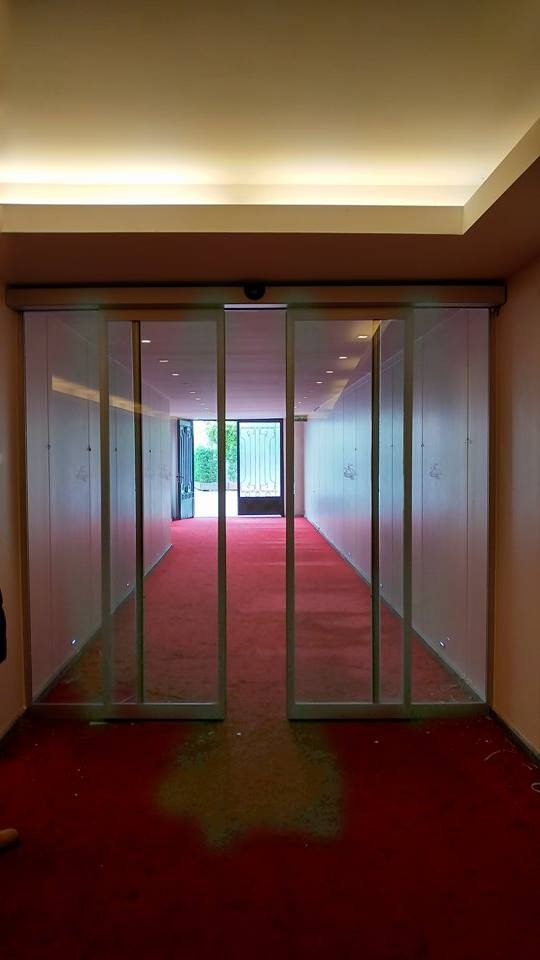

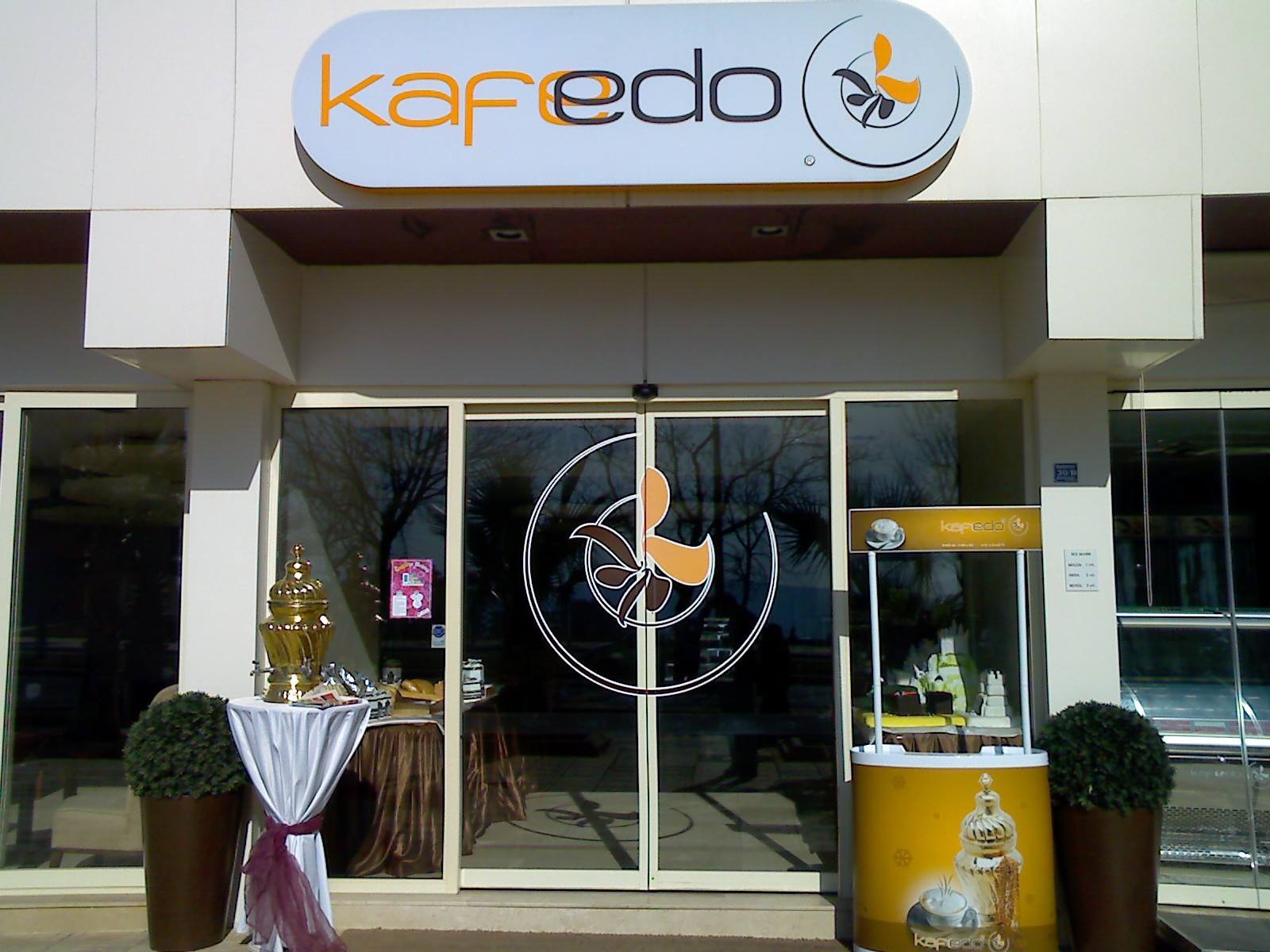

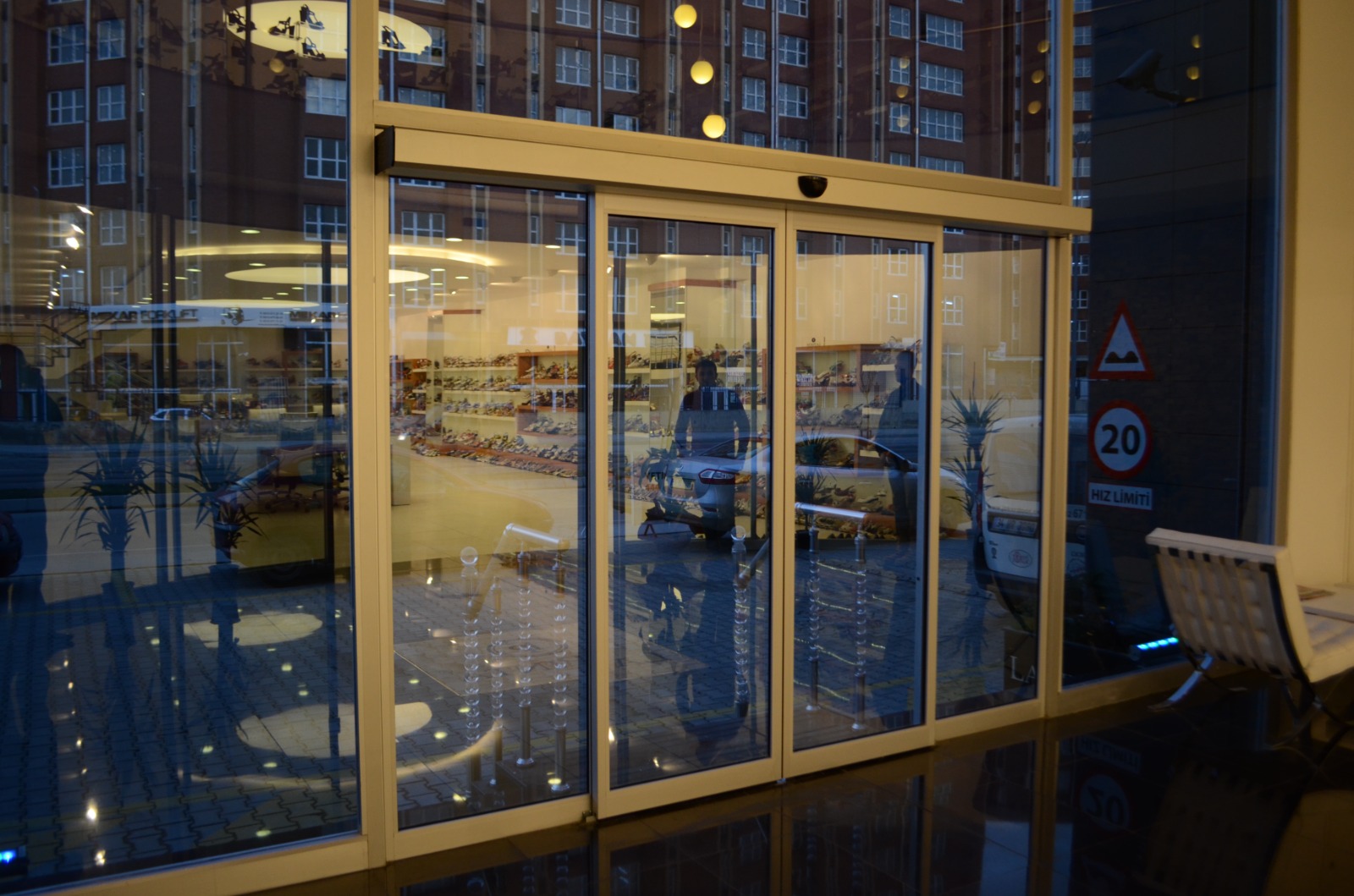

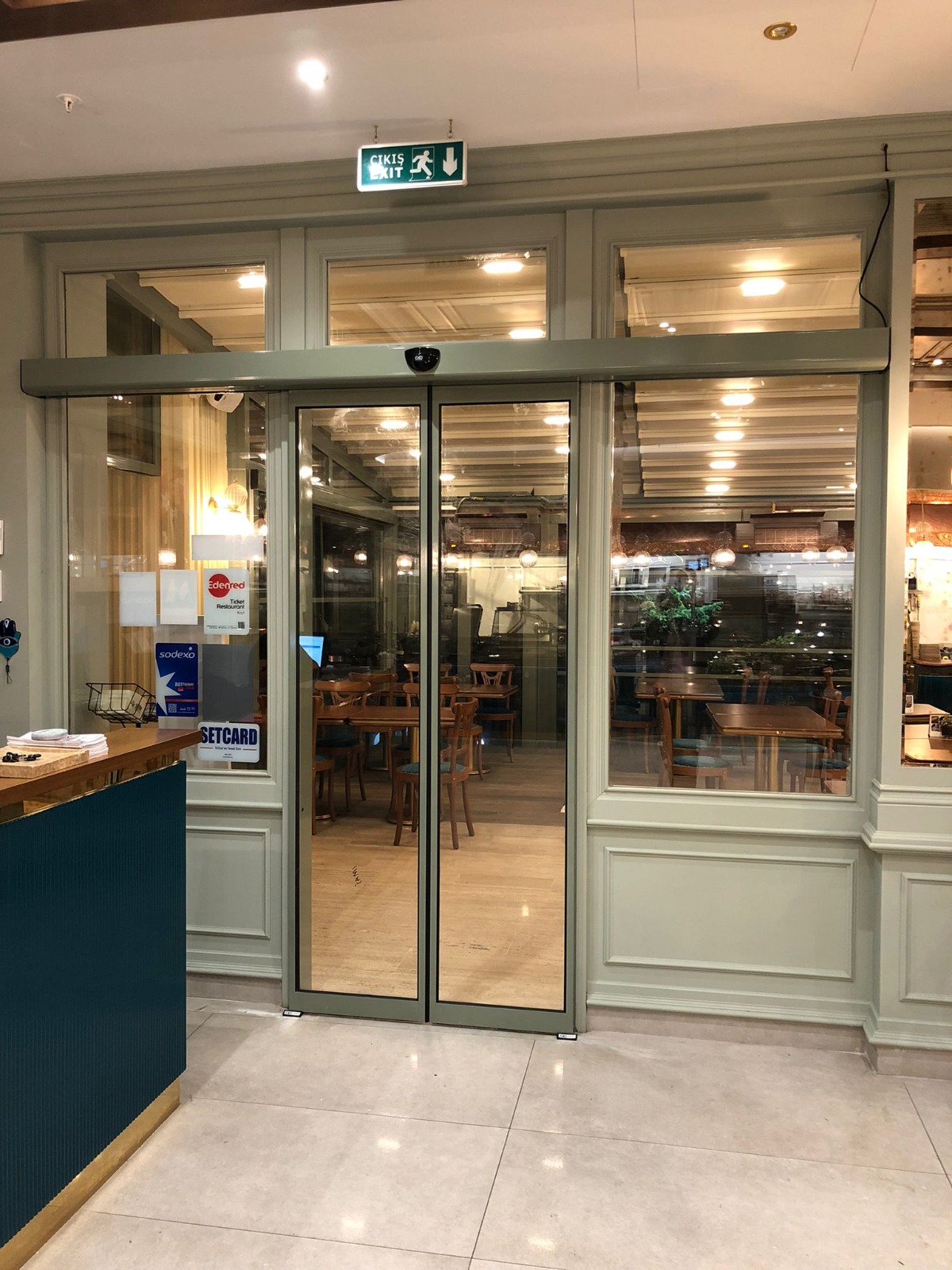

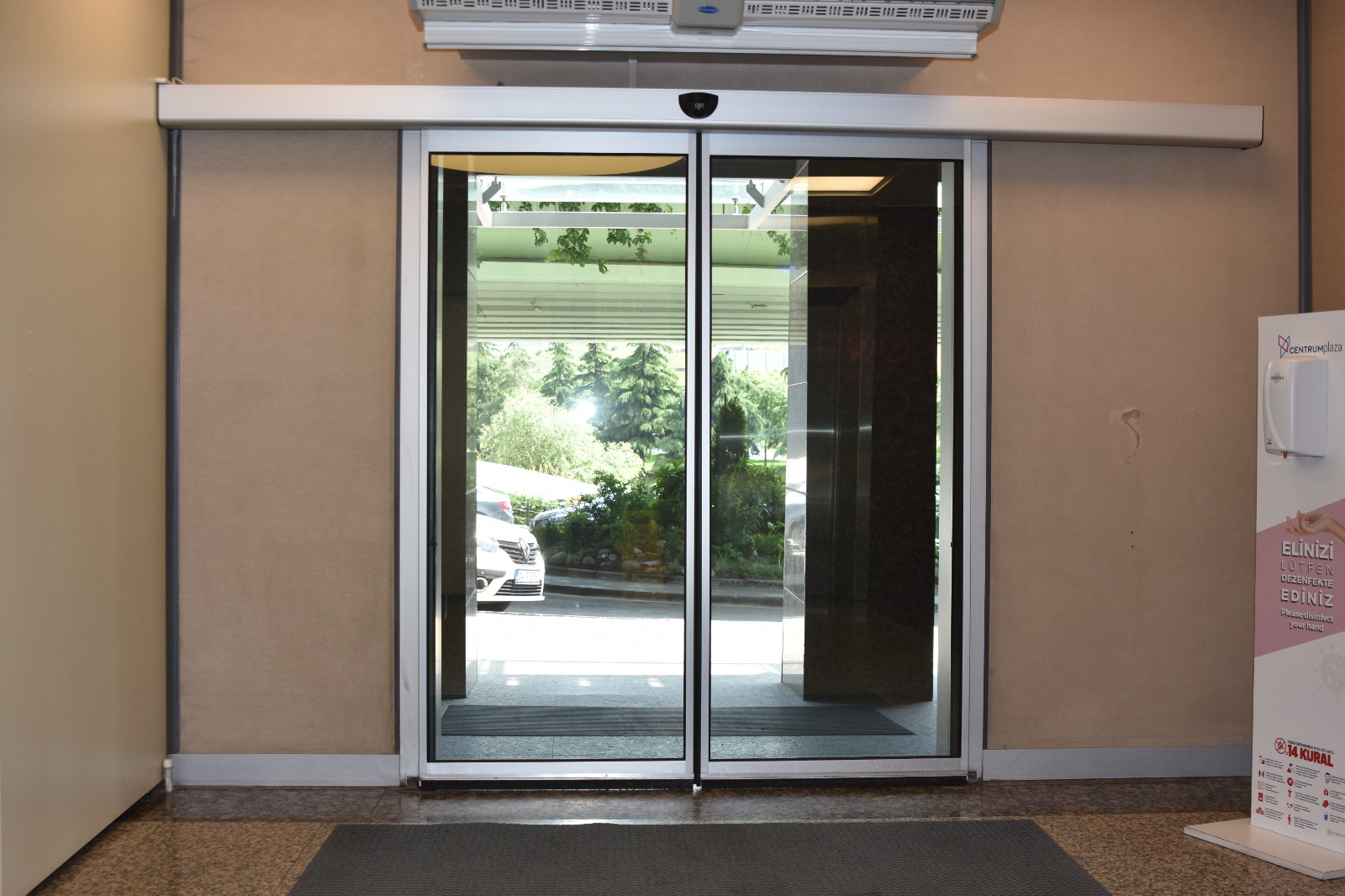

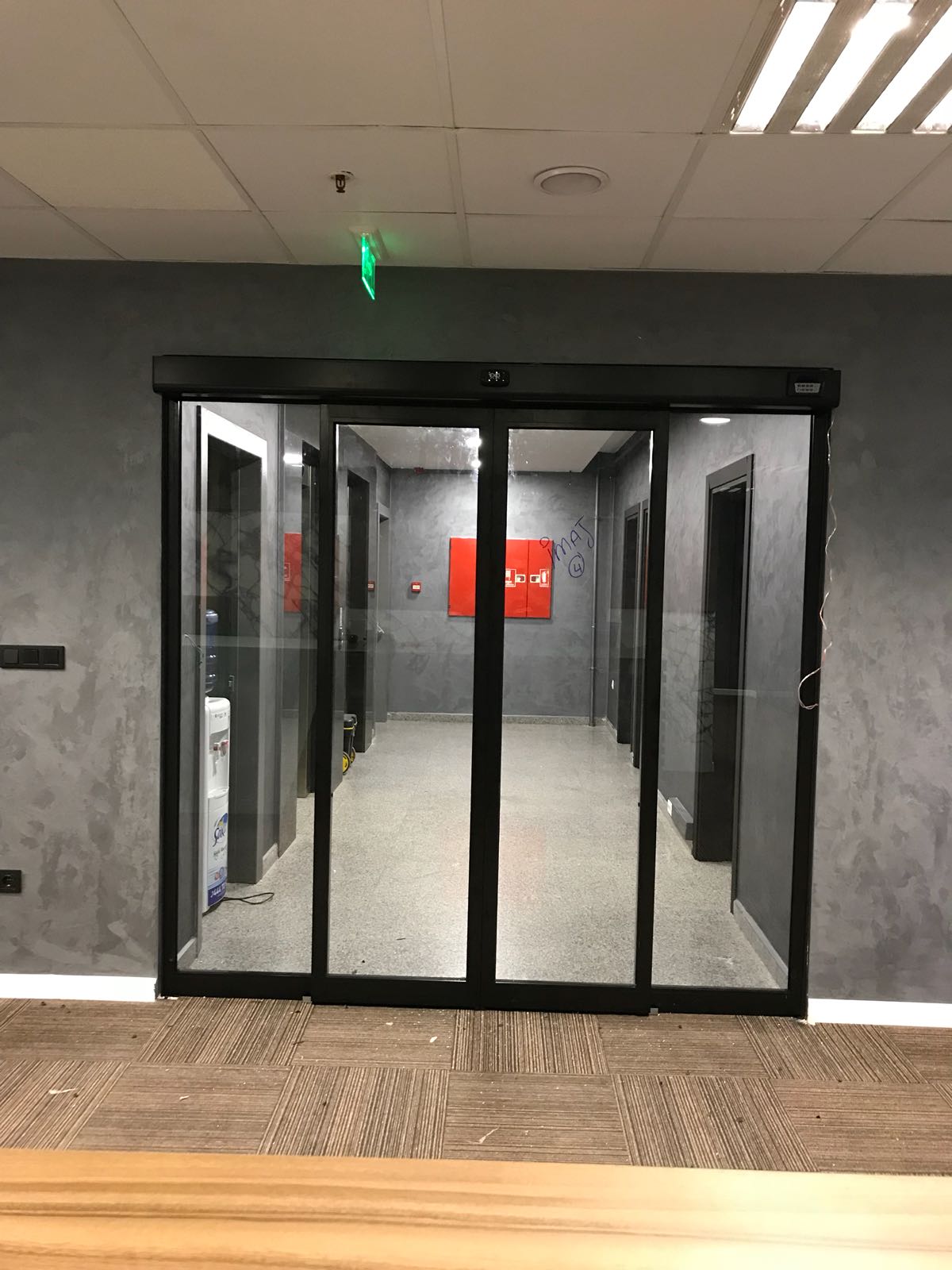

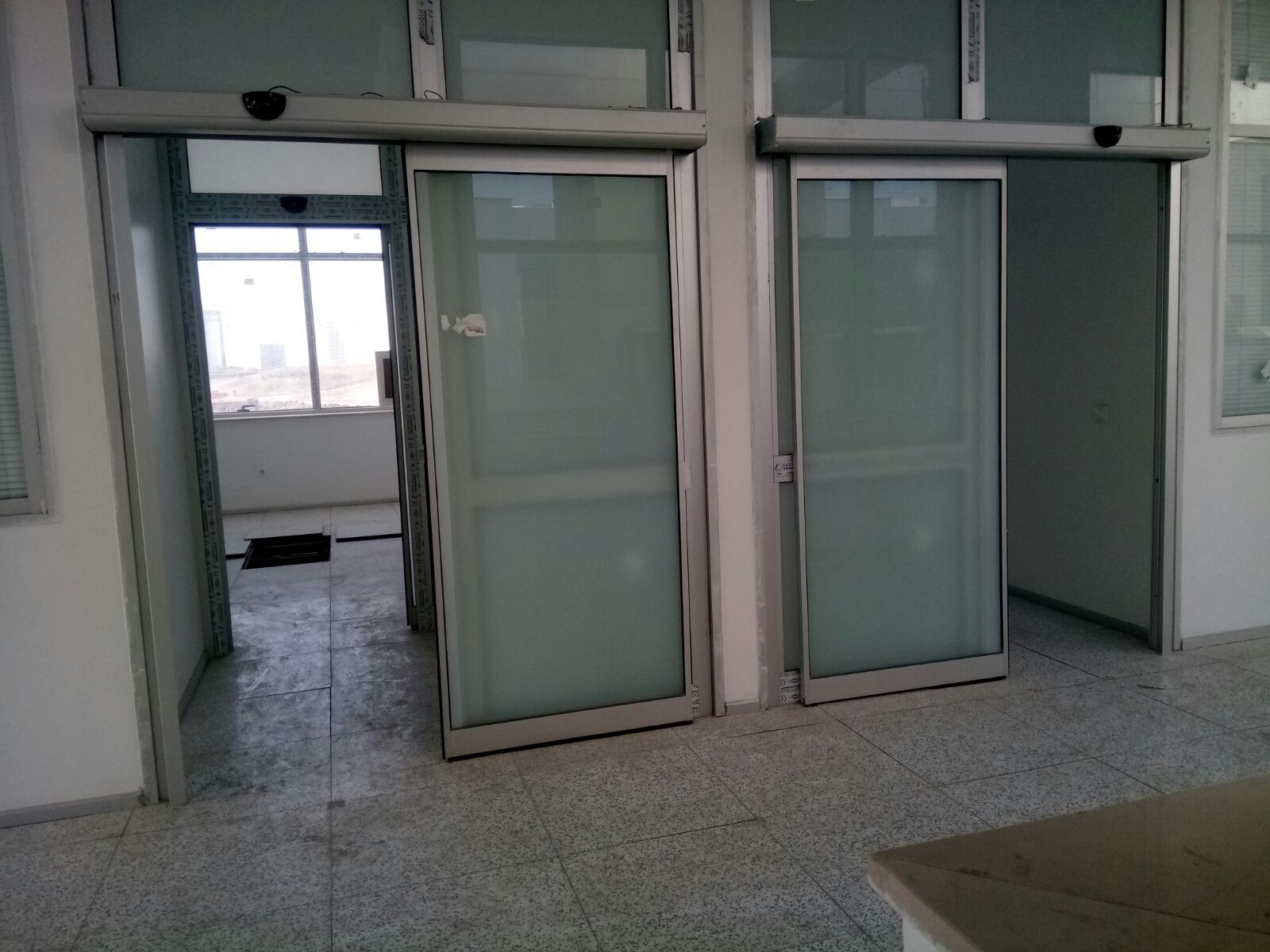

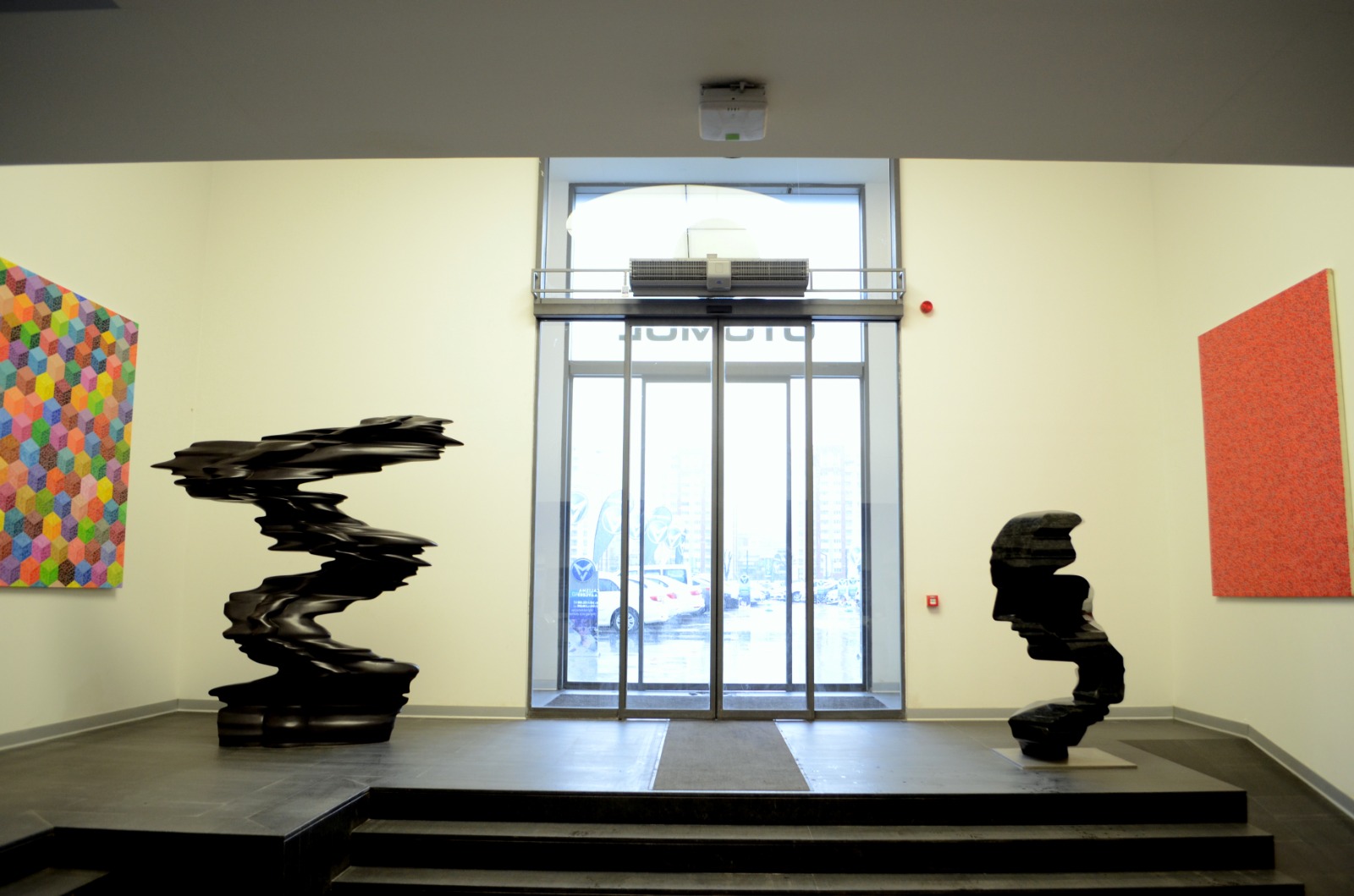

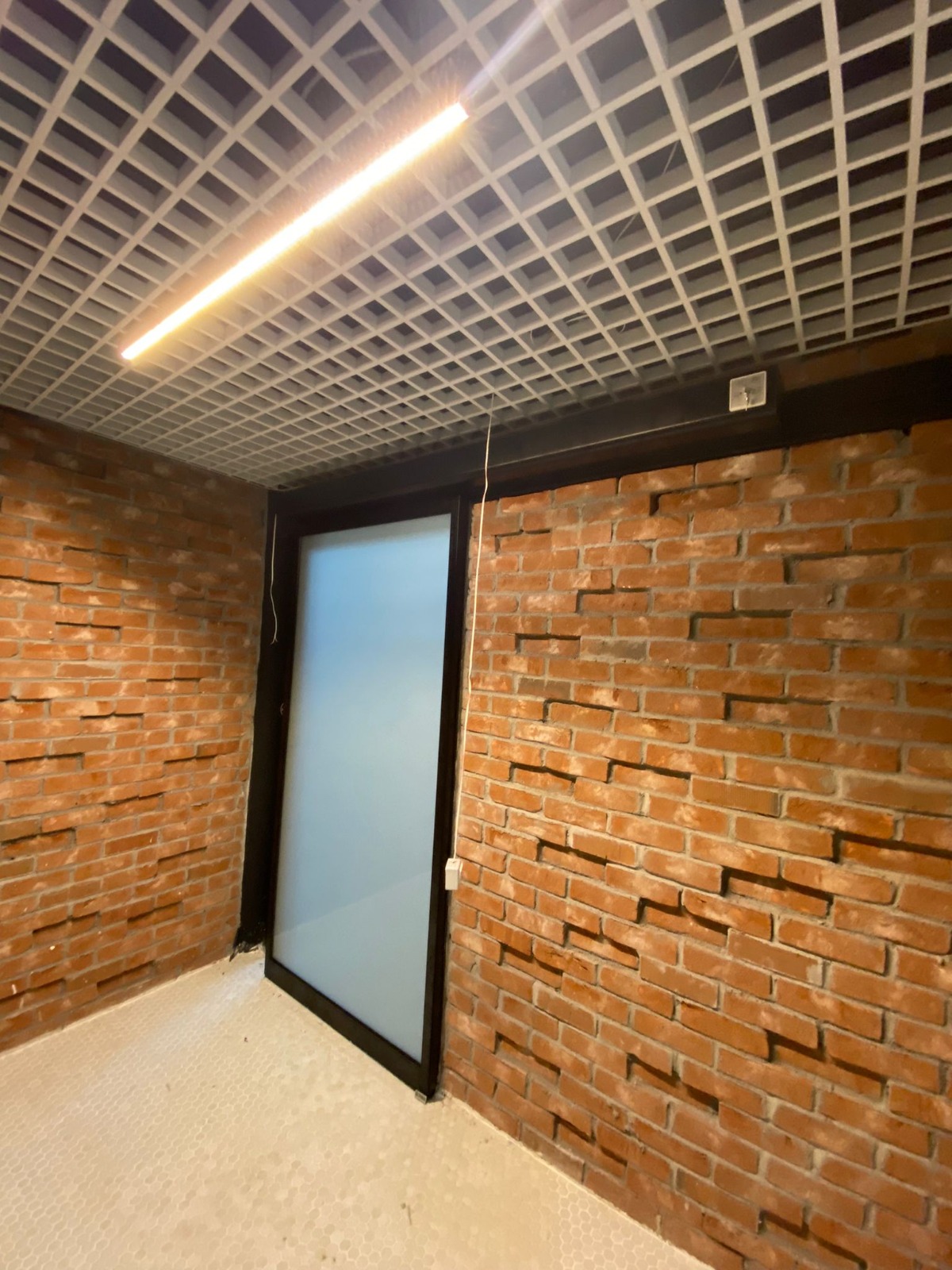

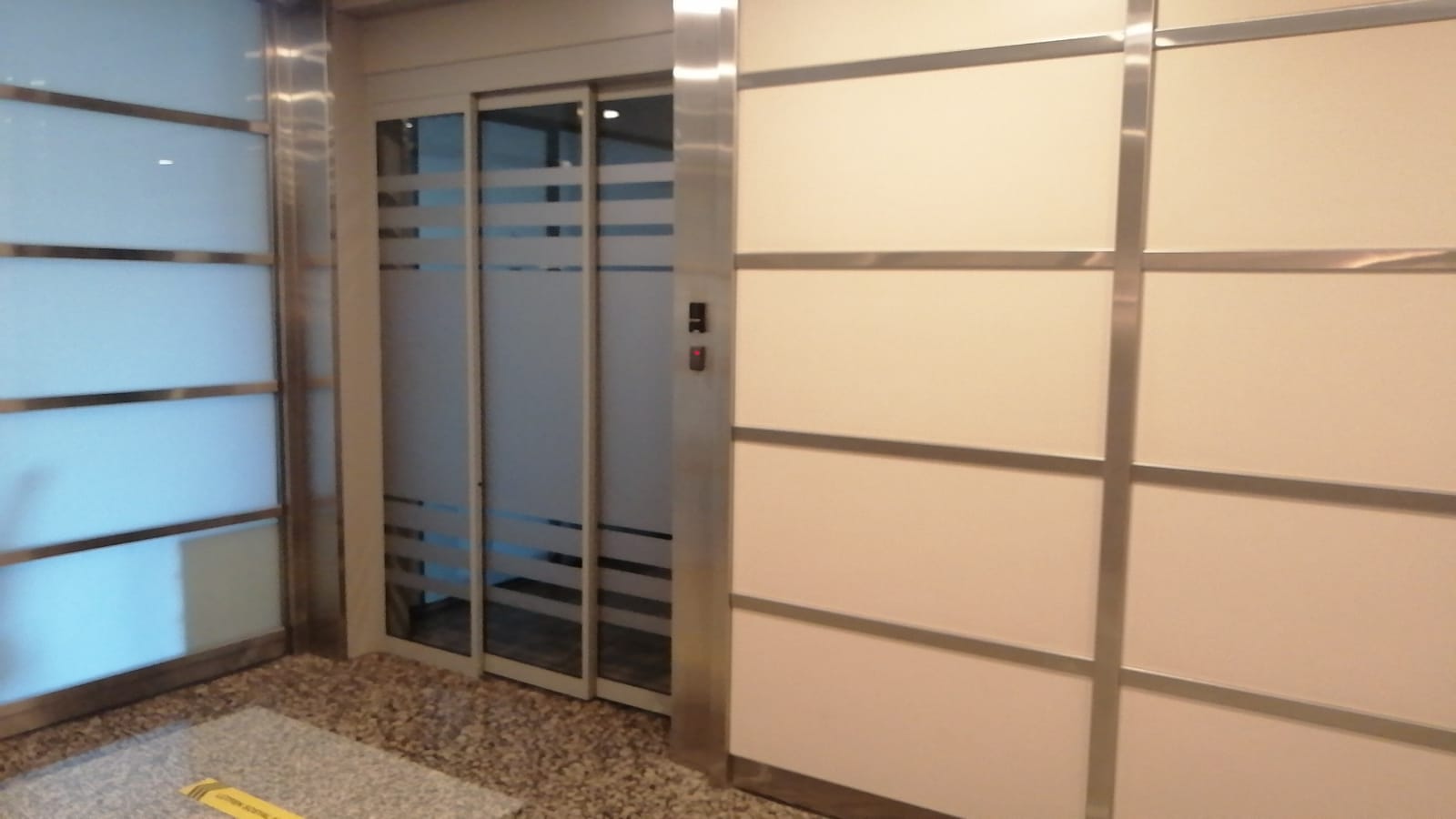

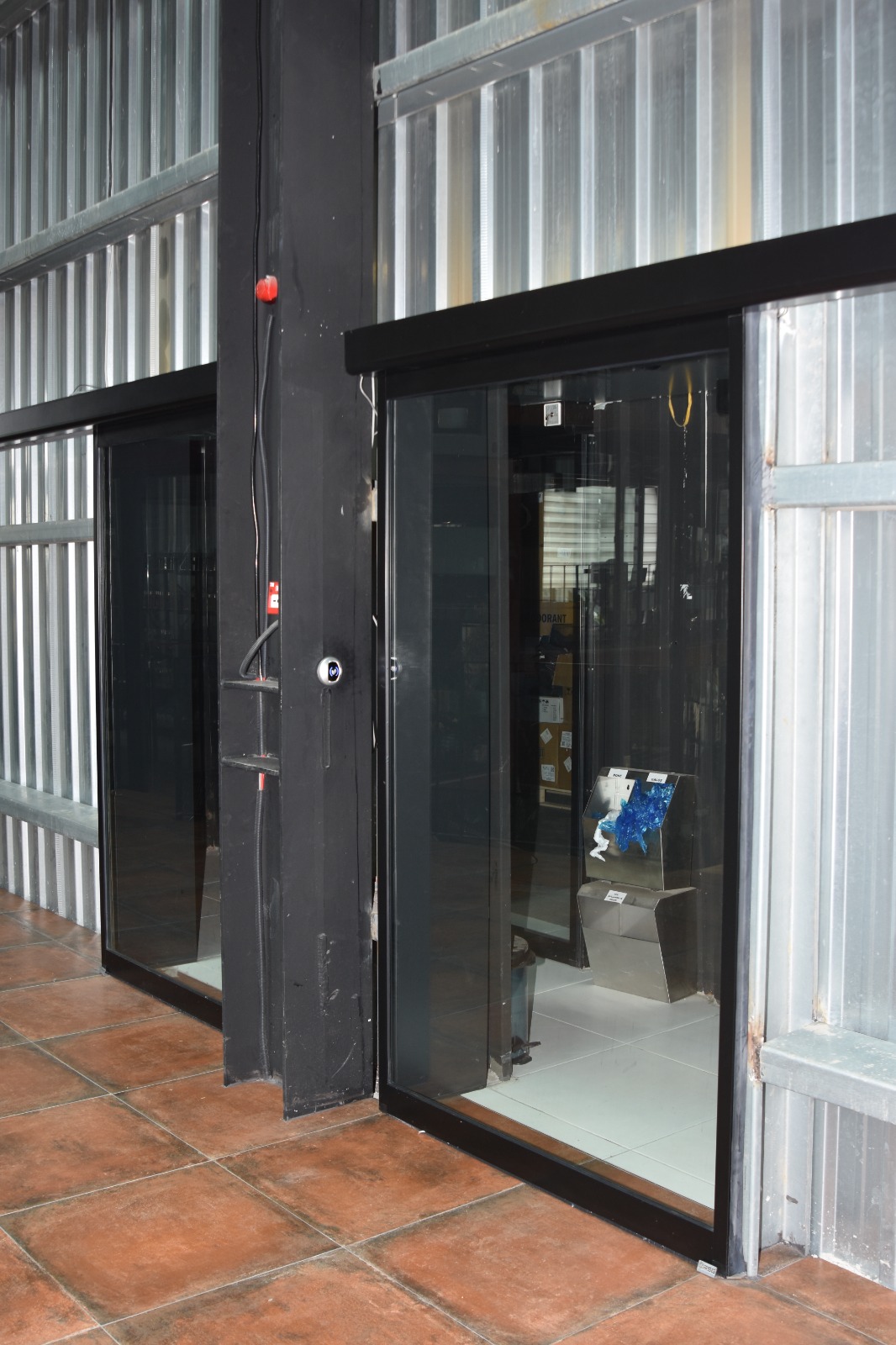

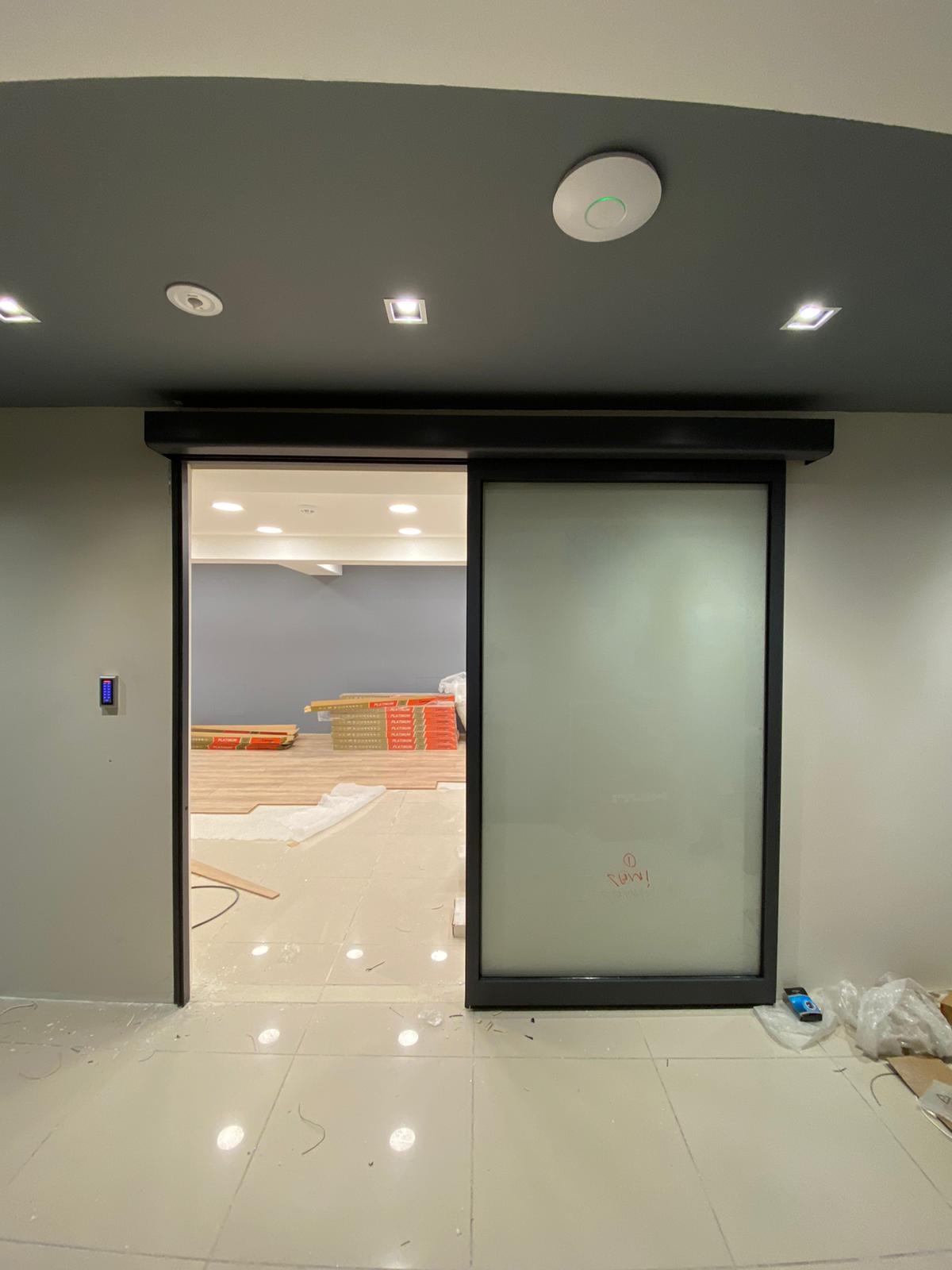

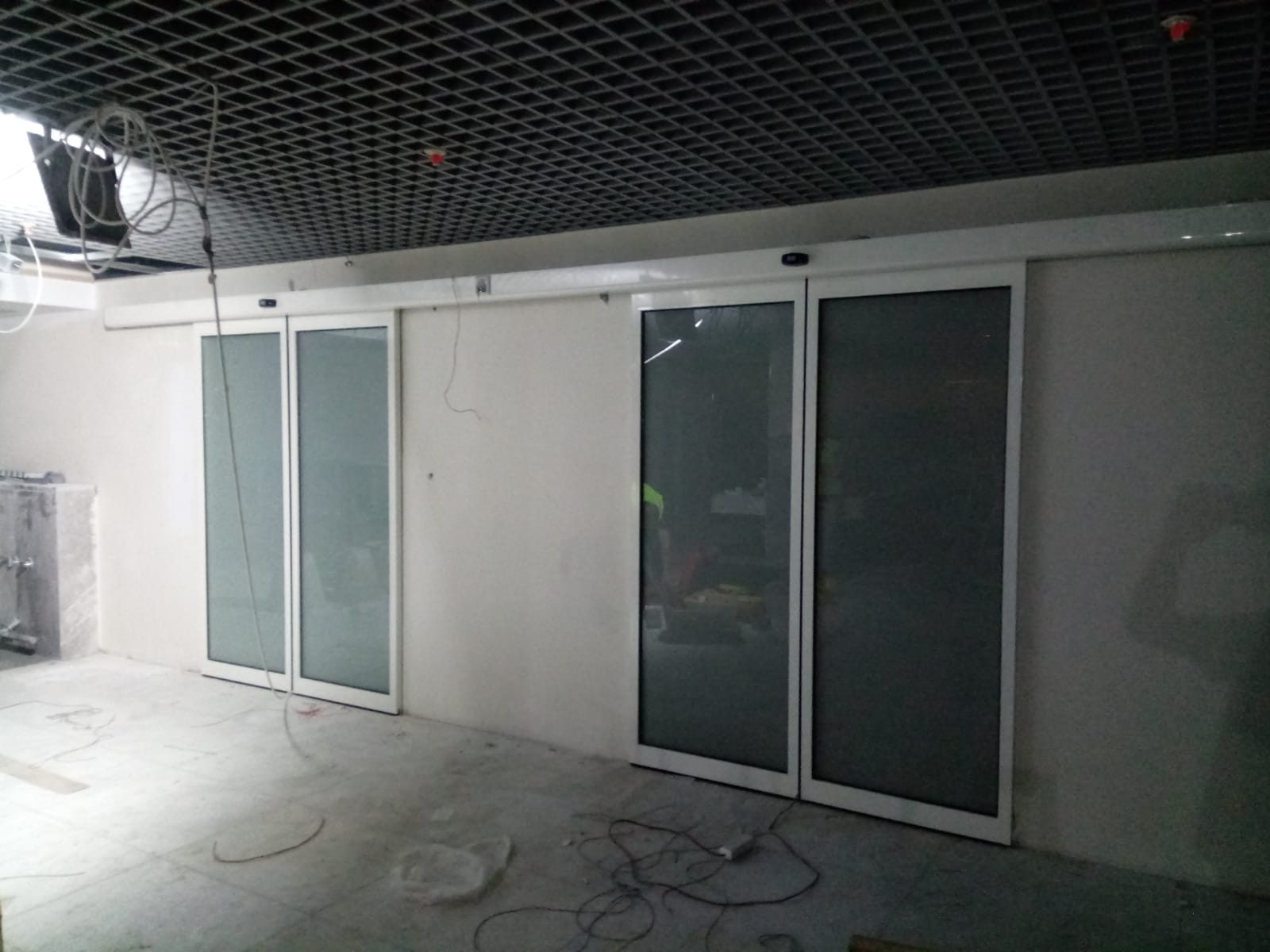

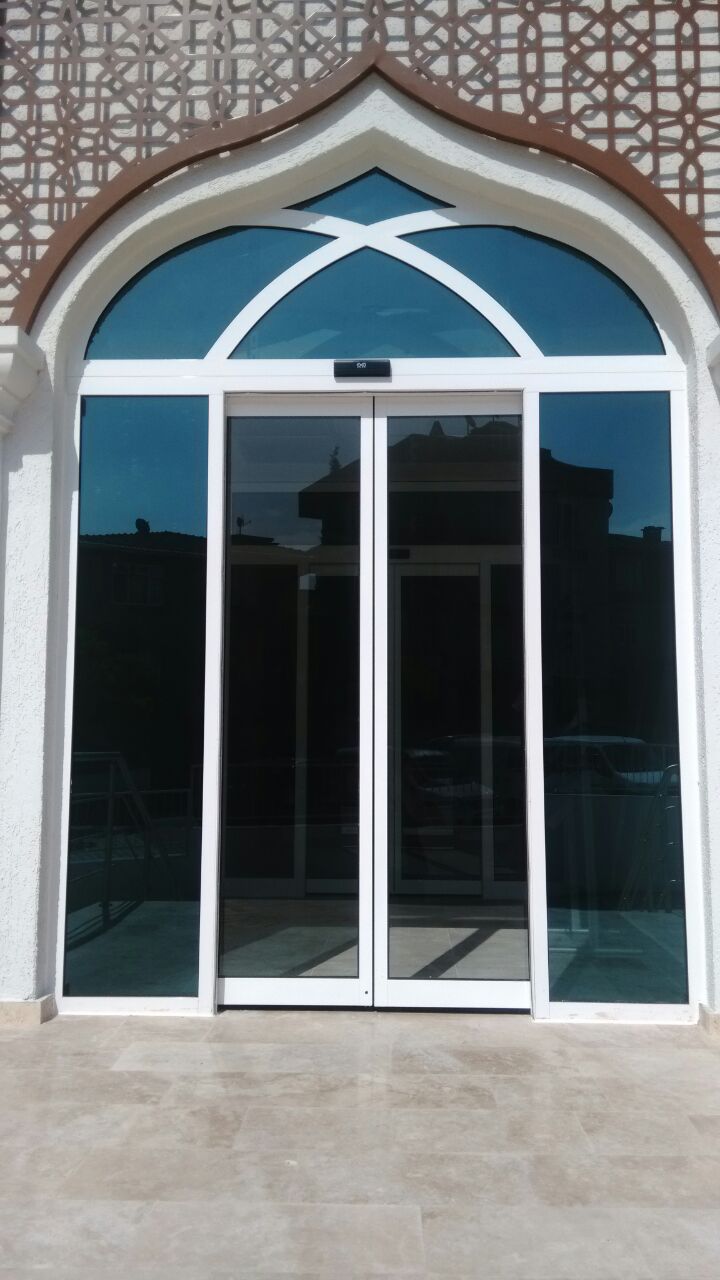

Exodoor Automatic sliding doors feature a design and technology that allows you to use fast and safe passage in the most economical way.

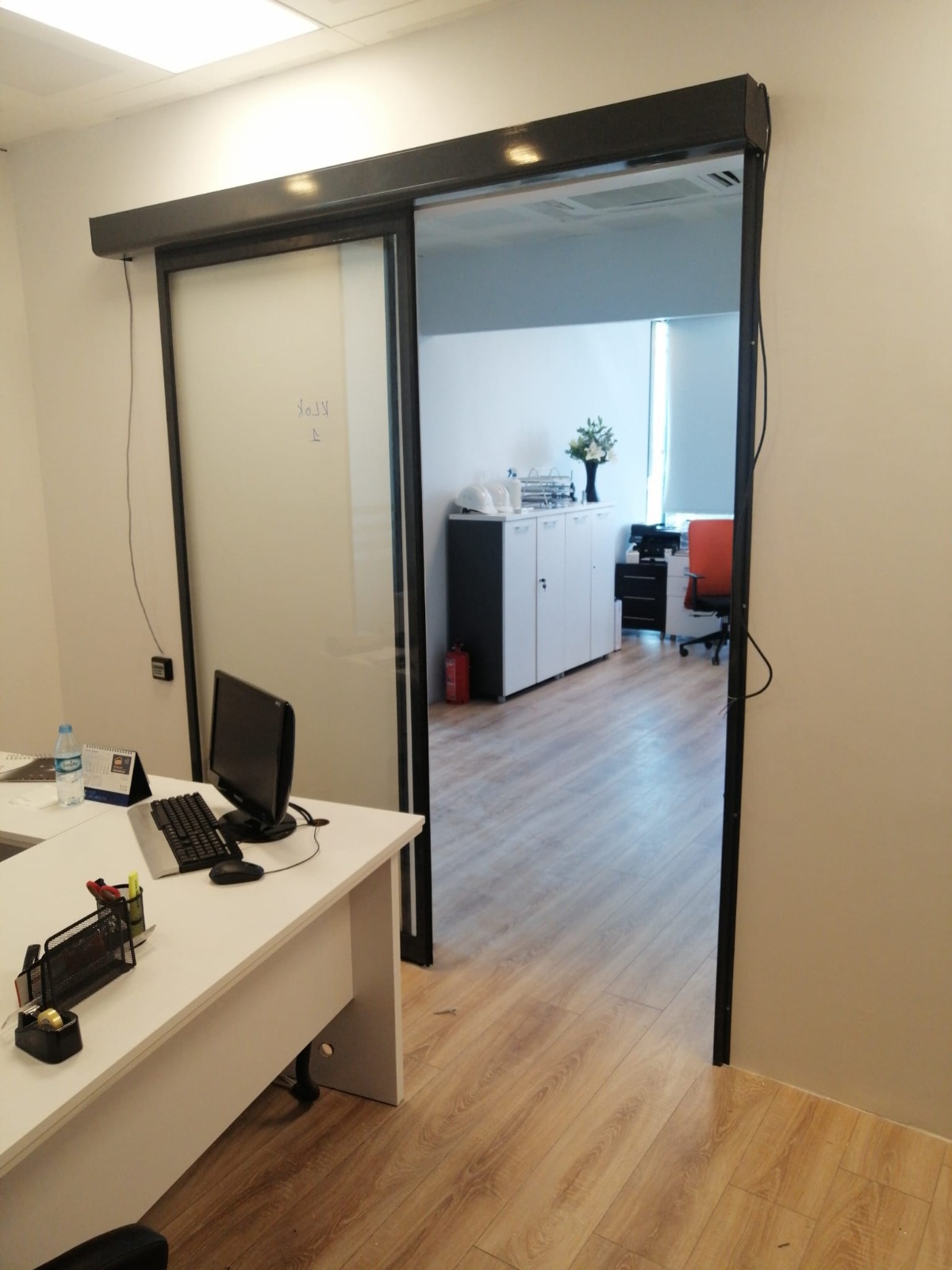

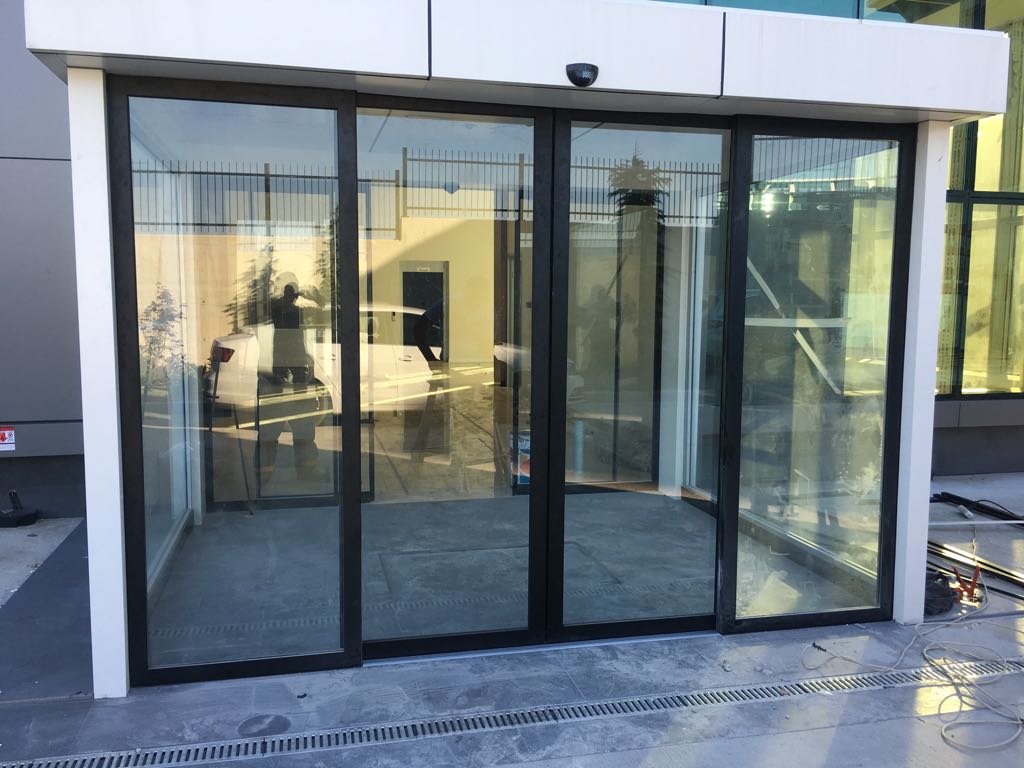

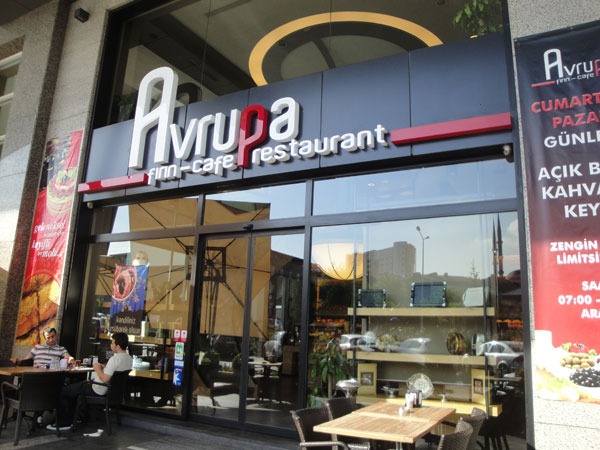

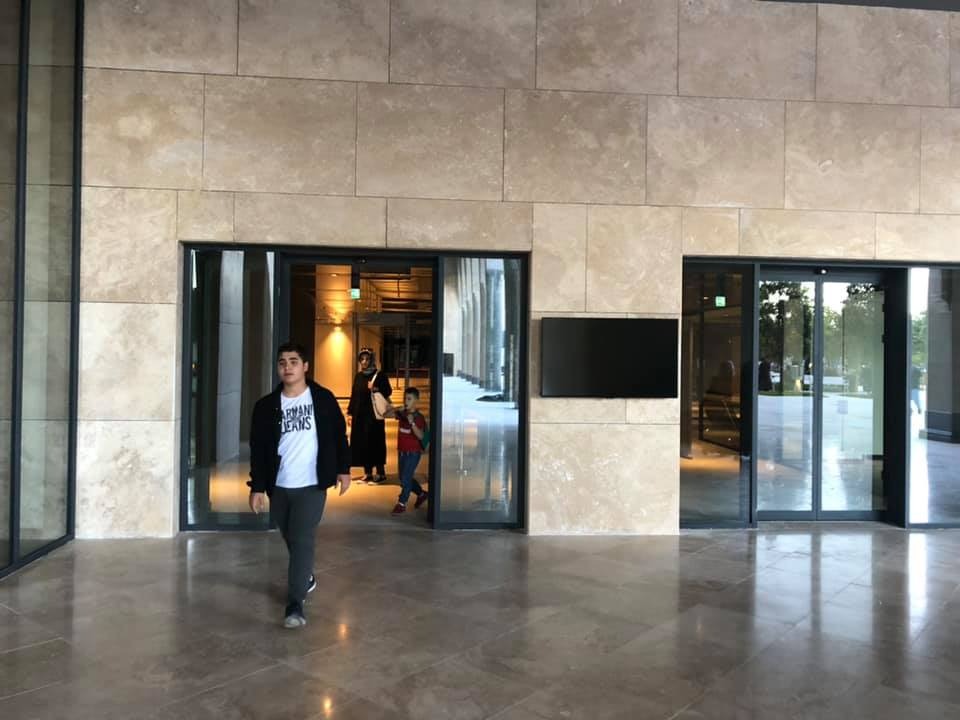

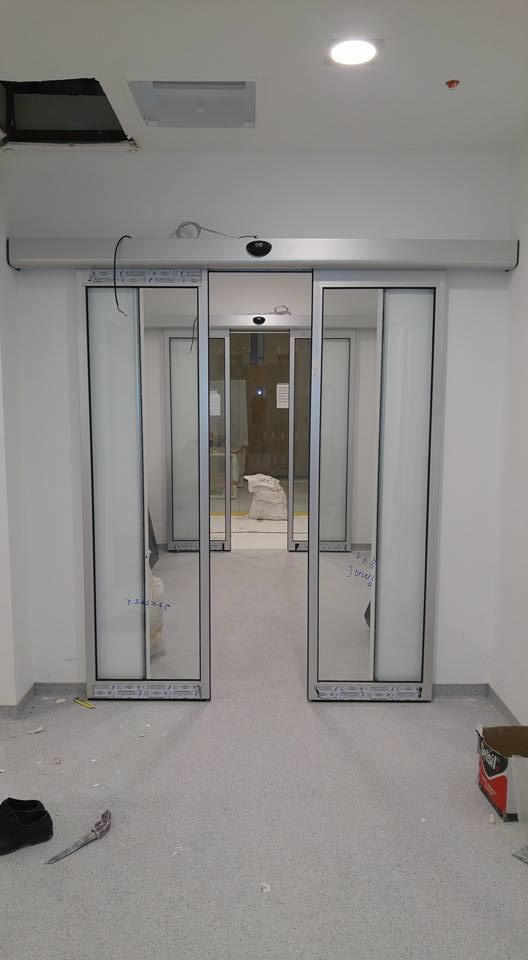

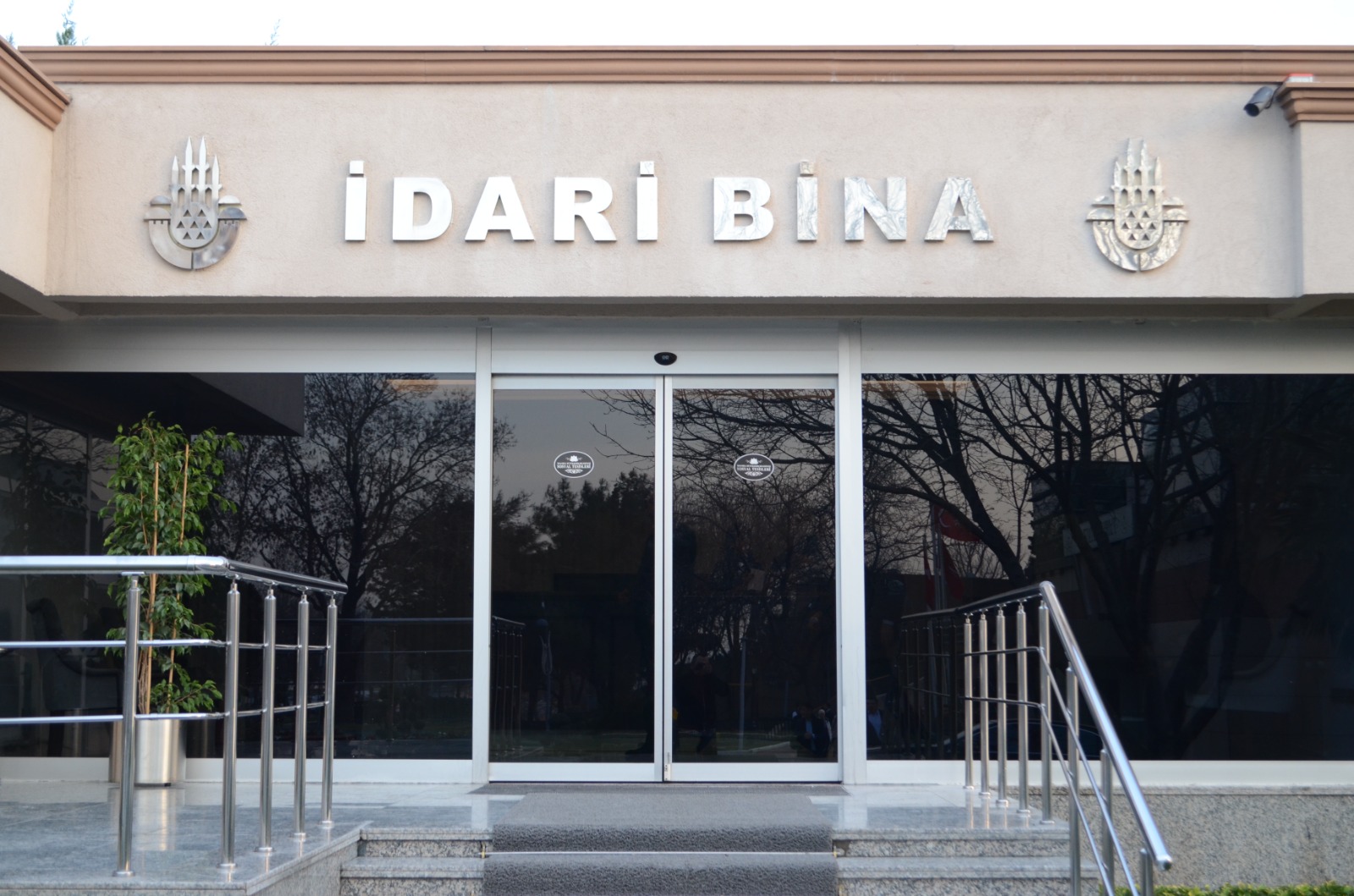

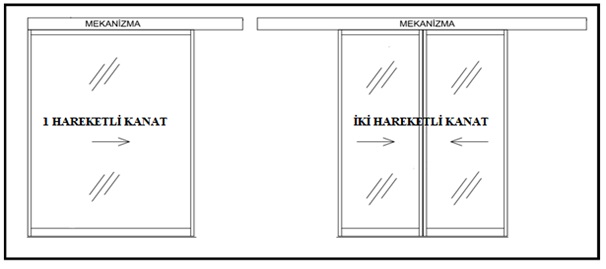

They offer wide entrances without wasting space in narrow areas. Depending on your needs, single-leaf and double-leaf versions are available as extremely comfortable and durable automatic sliding door mechanisms.

Exodoor Automatic Door Systems manufactures your automatic sliding doors to suit all needs and tastes, using transparent, colored, reflective, laminated, tempered, or laminated + tempered glass, and aluminum profile systems that provide consistent air insulation with a special brush and seal structure, electrostatically powder-coated (RAL standards) or anodized coloring techniques to suit all needs and tastes.

The rail system used in the mechanisms and the triple double wheel system used on a single wing eliminate the possibility of the door wings coming off their hinges as a result of impact.

The mechanism's motor, electronic control unit, electronic components, and connection systems are completely imported,

and all aluminum frames are designed according to the automatic door, with sealing prioritized in all joint details and these details solved with appropriate seal and brush systems with an aesthetic and modern line.

The mechanism unit is microprocessor-controlled. It has the ability to connect to all card-based, password-protected, and button-operated access systems.

Exo-Door

Functions Used at the Door:

The door can be left completely open
The door can be left completely closed
Automatic entry and exit capability for the door
The ability to disable one of the internal or external radars
The door can be opened to 70% (Winter position)

Exo-Door

Automatic Sliding Door Features;

There is no possibility of the door wings coming off their hinges as a result of impact, thanks to the rail system used in the mechanisms and the triple double wheel system used on a single wing.

The mechanism's motor, electronic control unit, electronic components, and connection systems are manufactured by us.

All aluminum frames are designed for automatic doors, and all joint details are solved with appropriate seal and brush systems, prioritizing leak prevention

and achieving an aesthetic and modern look.

The mechanism unit is microprocessor-controlled. It has the ability to connect to all card-based, password-protected, button-operated, and similar access systems.

Otomatik Kayar Kapı Teknik Sistem Özellikleri;

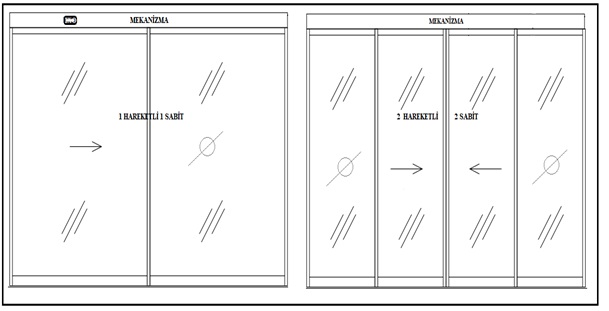

1. Position Key; Used to change the door's operating modes.

2. Protection Sensor; Used to prevent jamming in the opening directions of the moving wings. (OPTIONAL)

3. Radar; Enables the door to open when motion is detected.

4. Fixed Wing; These are fixed glass panels on the profile that do not move.

5. Moving Wing; This is the wing that enables movement connected to the mechanism.

6. Detection Area; Distance settings can be adjusted via the radar.

7. Safety Photoelectric Sensor; Used to prevent pinching between the moving wings.

EXODOOR BD-250 AUTOMATIC SLIDING DOOR TECHNICAL SPECIFICATIONS
System Brand Model			: EXODOOR® : BD-250
Motor			: 24V 100W PMDC 1:15 Reducer 100 Pulse Dual Channel Encoder
Electronic Control Unit			: Microprocessor 32-bit 48MHz 32 kHz PWM Output PID Algorithm Motor Speed Control 7-Segment Display Adjustable via Card. Manual - Digital - Remote Controlled Position Switch Connectivity Feature Air-lock-Breakout - Signal Close - Fire Signal Inputs Internal Point Photocell External Photocell Input Curtain Photoelectric Sensor Connectivity Opening Zone Safety Photoelectric Sensor Connectivity Feature Automatic Weight and Distance Recognition AC-DC Power Supply Alternative Battery Input and Charging Feature Electromechanical Lock Connection External 24 VDC Relay Output Feature
Capacity			: 150 kg x 1 (single wing) - 125 kg x 2 (double wing)
Movement			: On reinforced plastic (Derlin) wheels
Pull			: Timing Belt
Wheels			: 3-Wheel System, Specially Designed Wear-Resistant Material. (2 wheels on the bottom with a diameter of 55mm - 1 wheel on the top with a diameter of 40mm)
Opening Speed			: 15 - 65 cm / s (single wing) - 15 - 55 cm / s (double wing)
Closing Speed			: 10 - 45 cm / s (single wing) - 10 - 43 cm / s (double wing)
Opening Time			: 0 -30 sn (adjustable)
Feeding			: 100-240 VAC—27,5VDC 6,5A SMPS
Maximum Current Draw			: 6.5 A
Working in emergencies			: Battery (Optional) 2x12 V 1.3A Dry Cell Battery Kit
Location Features			: GRAPHIC DISPLAY PROGRAMMER (OPTIONAL) 128 x 64 Pixel Graphic Display Communication via Modbus Serial Communication Fully Synchronized with Processor Surface Mounting Capability Signal Monitoring 7 Different Mode Options Ability to Configure All Processor Settings Key Lock Descriptive Error Codes Turkish-English Menu Option
Protection Level			: IP 22
Electronic Lock			: 24 Vdc Two-Way Use with Holding Magnet
Mechanism Dimensions			: Mechanism Height: 8 cm Mechanism Cover Height: 12 cm Mechanism Depth: 15.5 cm
Internal Photoelectric Sensor			: 1 Receiver 1 Transmitter 38kHz Receiver Transmitter 2.5 m Coaxial Cable.
Multiplication Functions			: The system activates and reverses direction upon encountering any obstacle.
Operating Temperature			: -20° C / + 55° C
European Standards Certification			: CE -EN 16005 - İSO 9001-2015 - TSE-HYB
