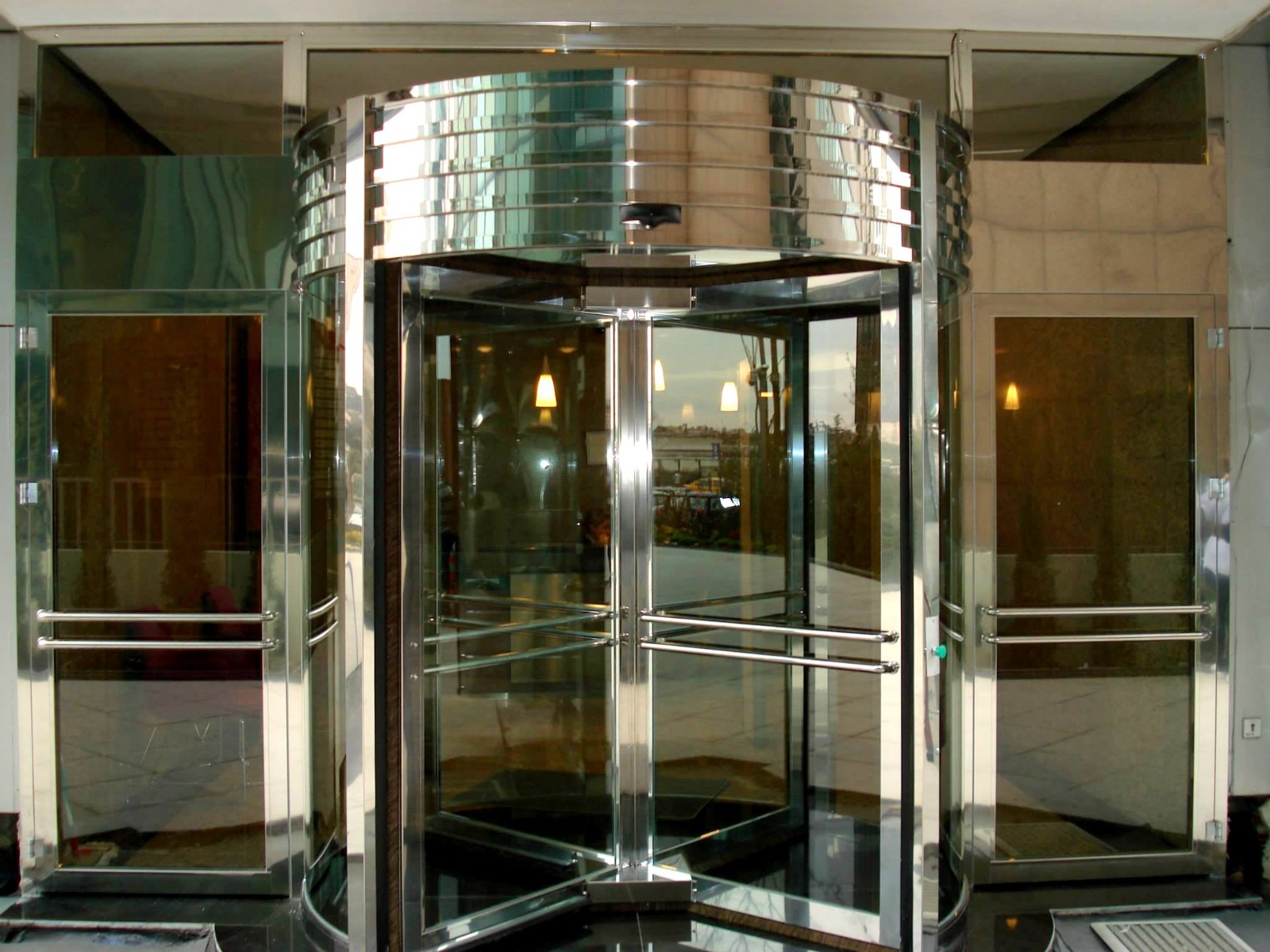

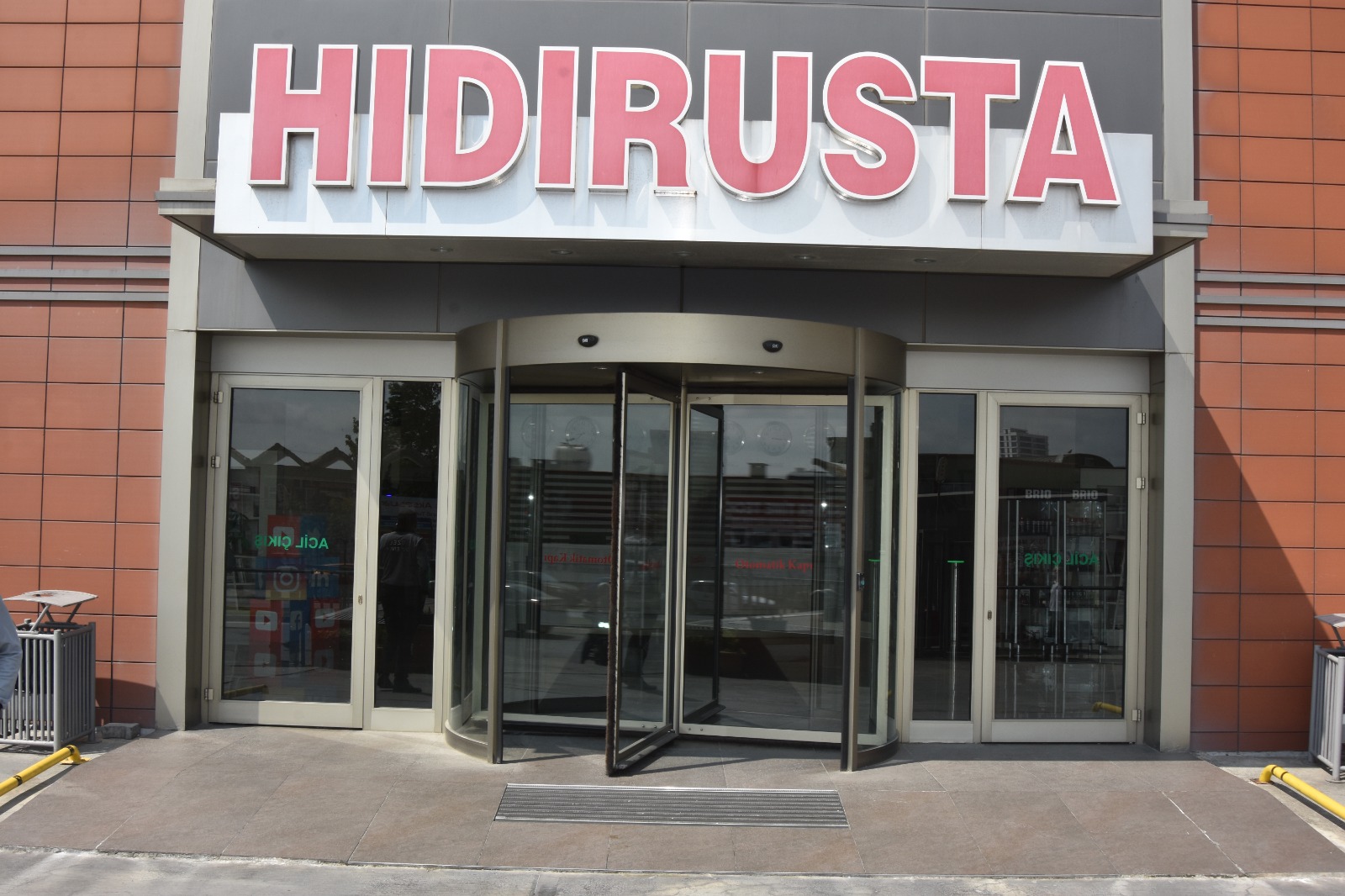

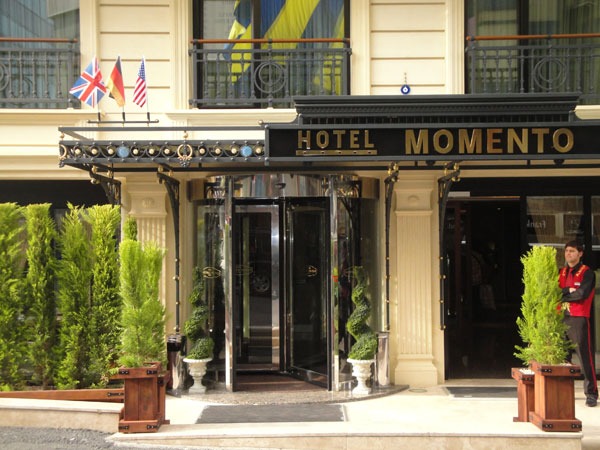

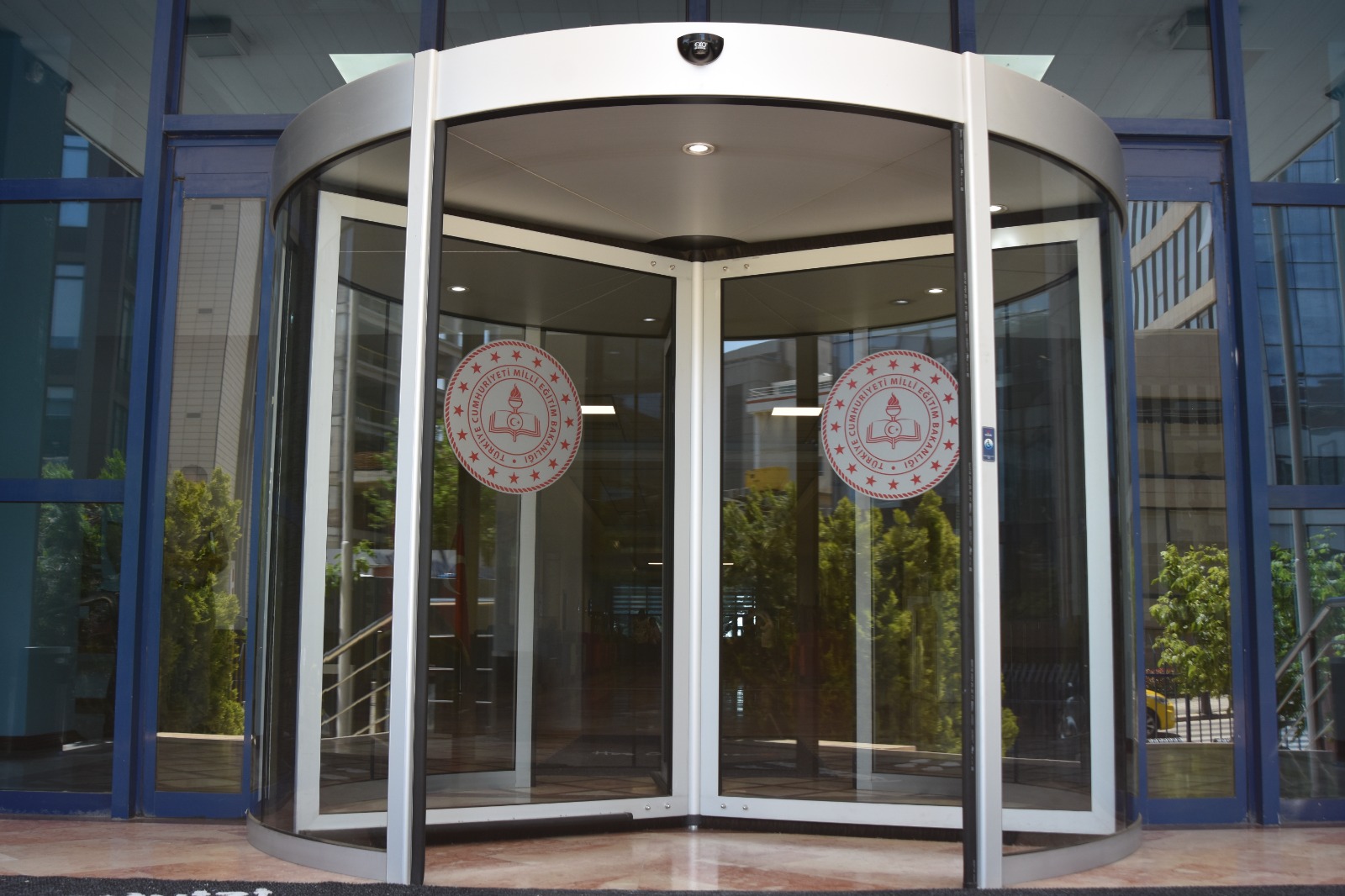

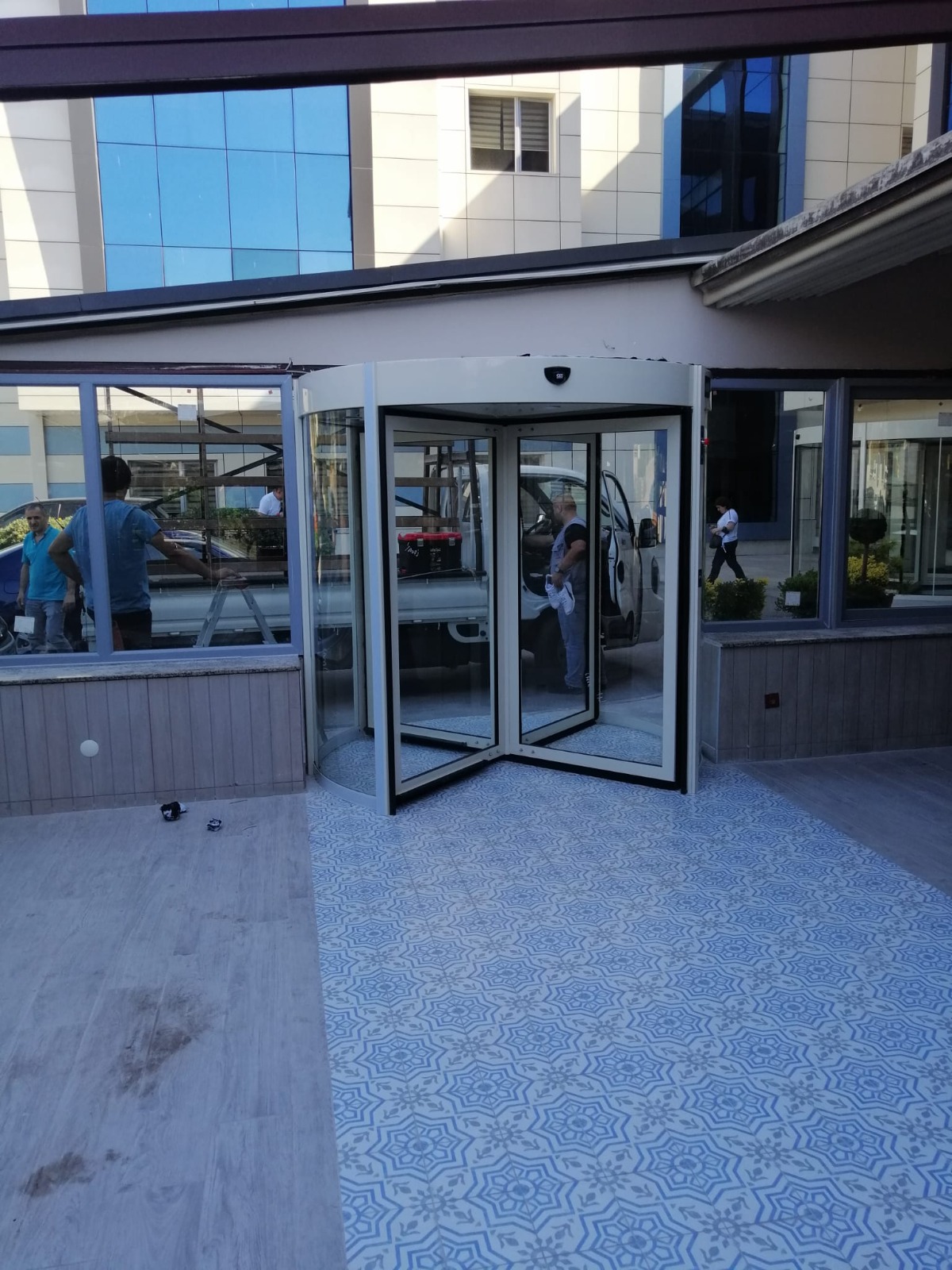

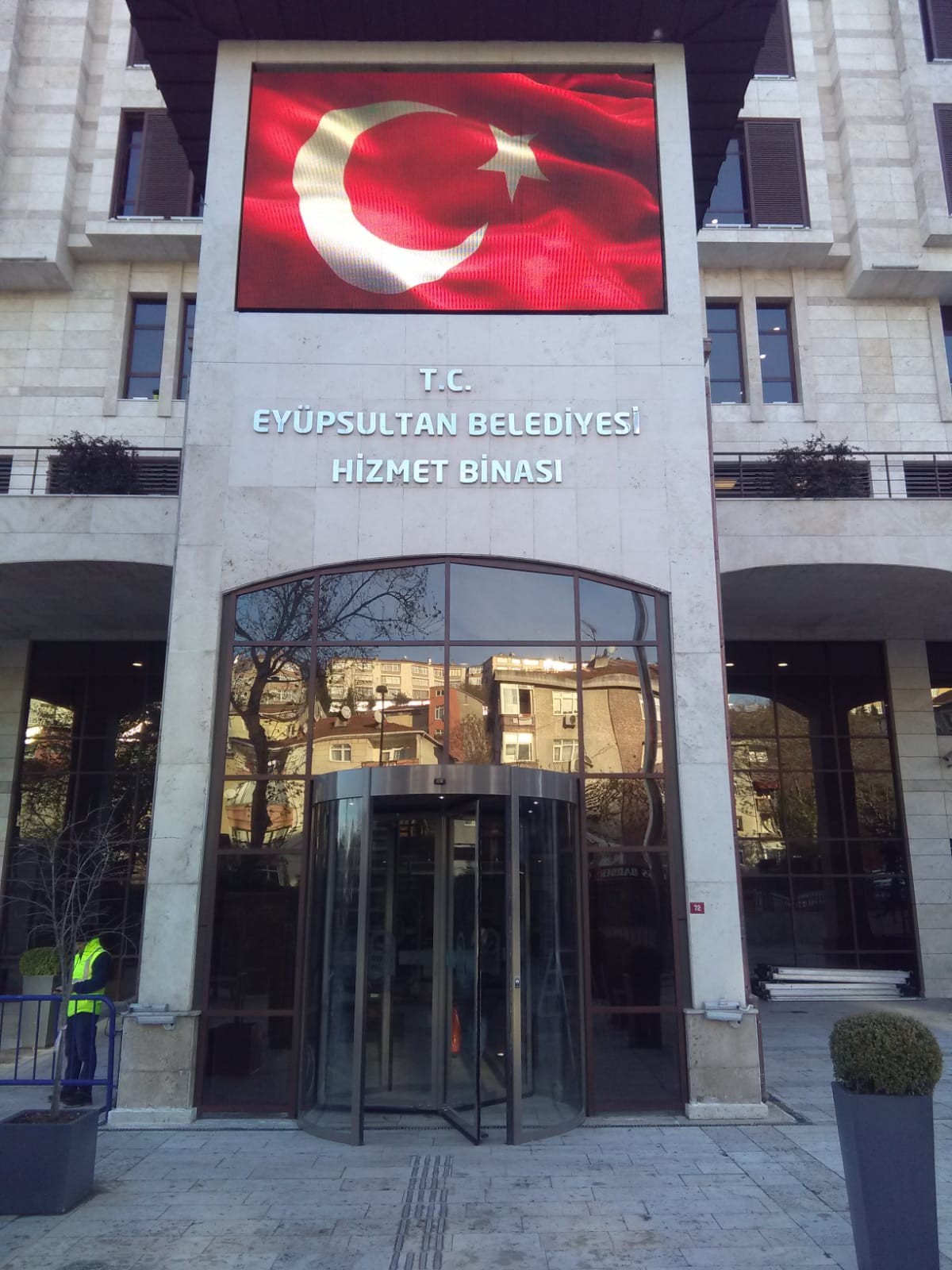

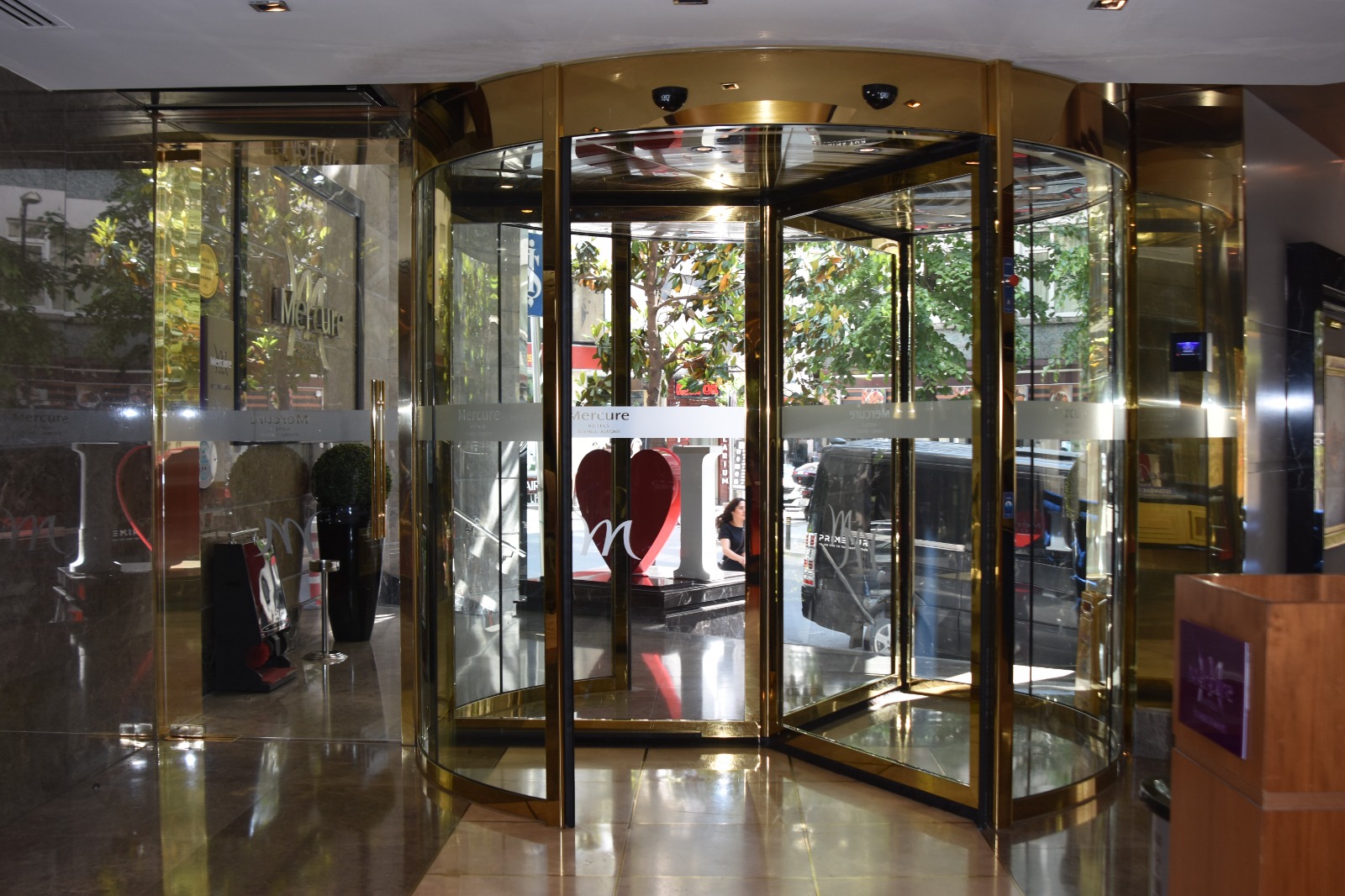

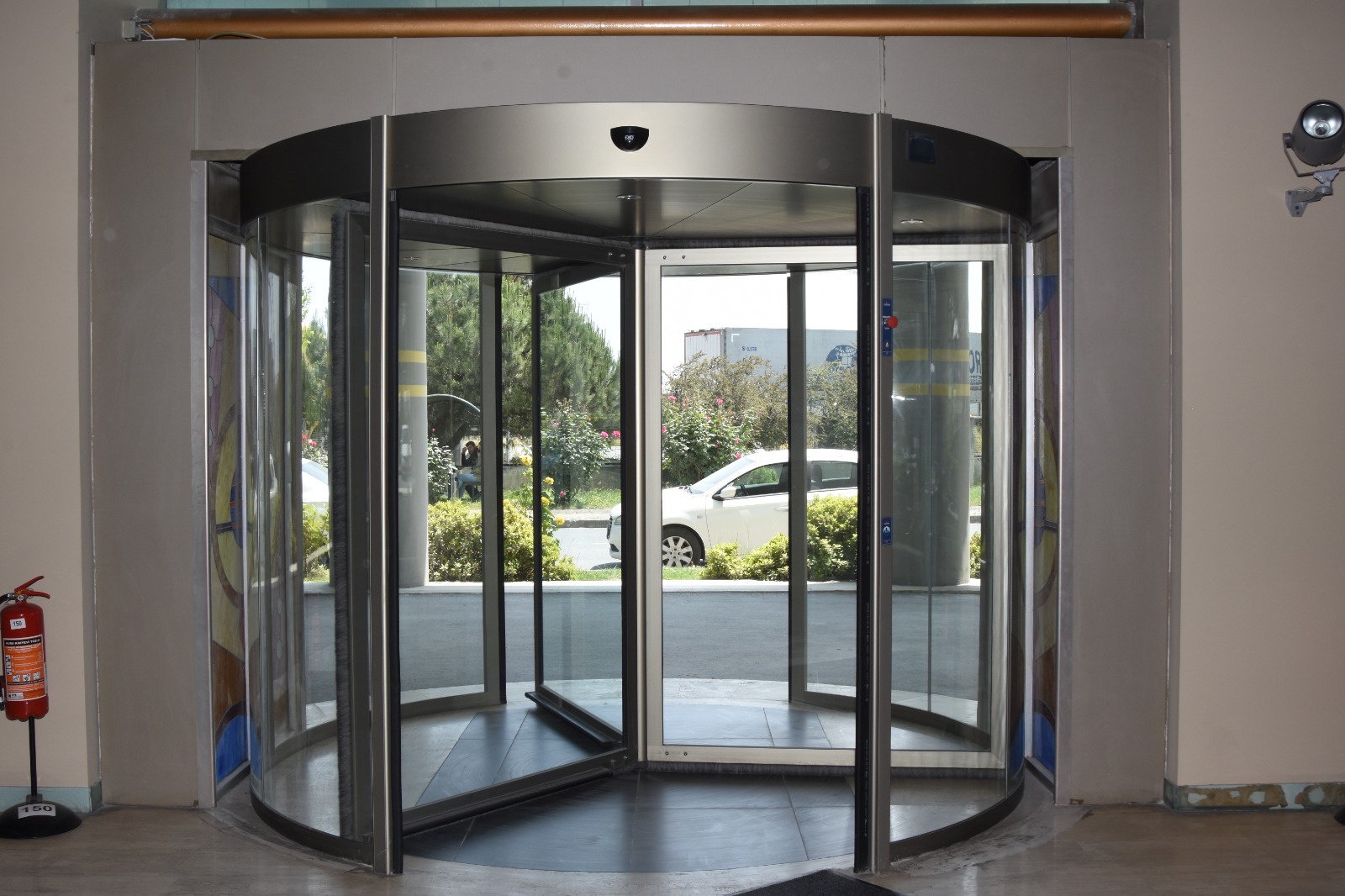

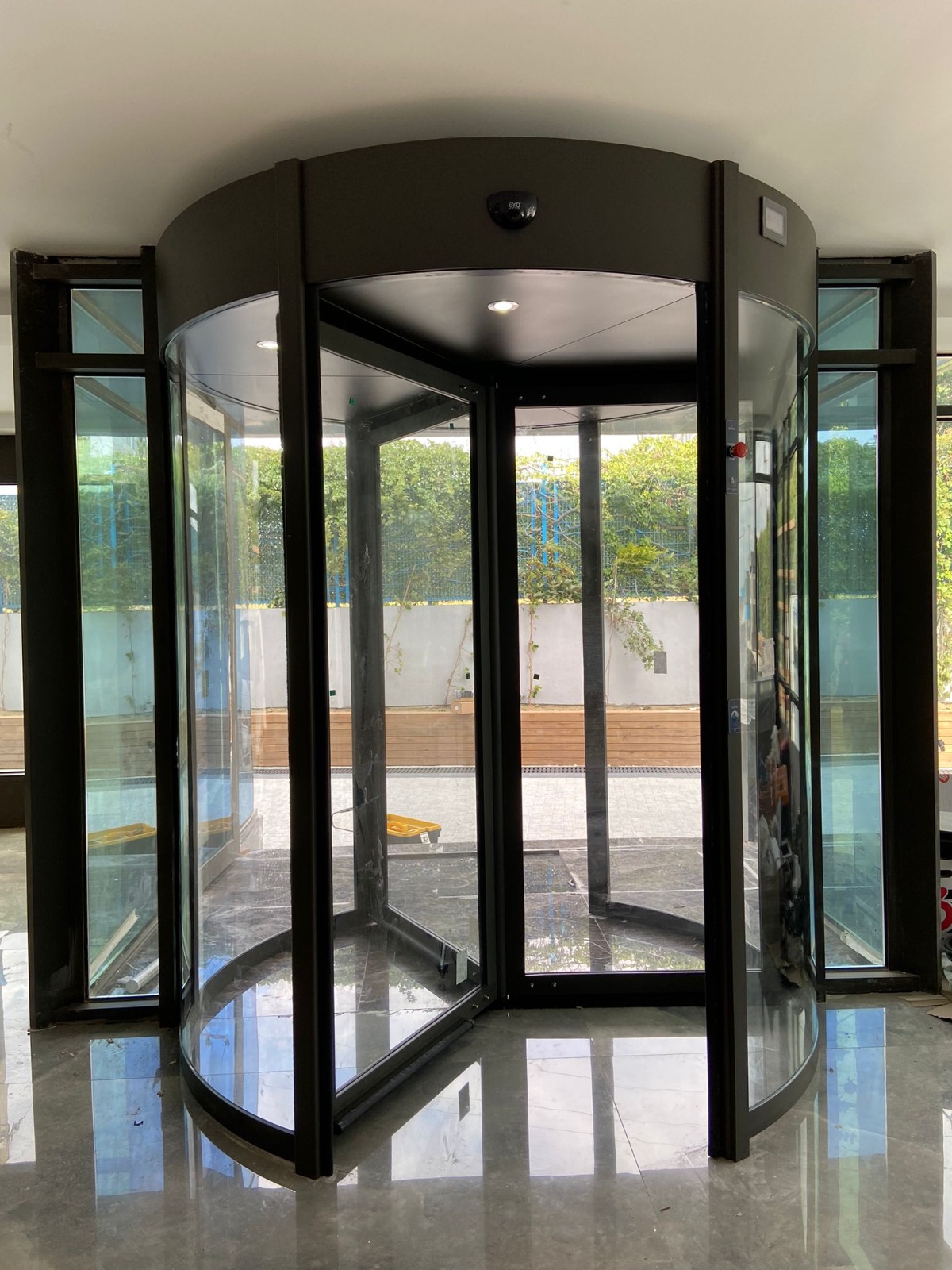

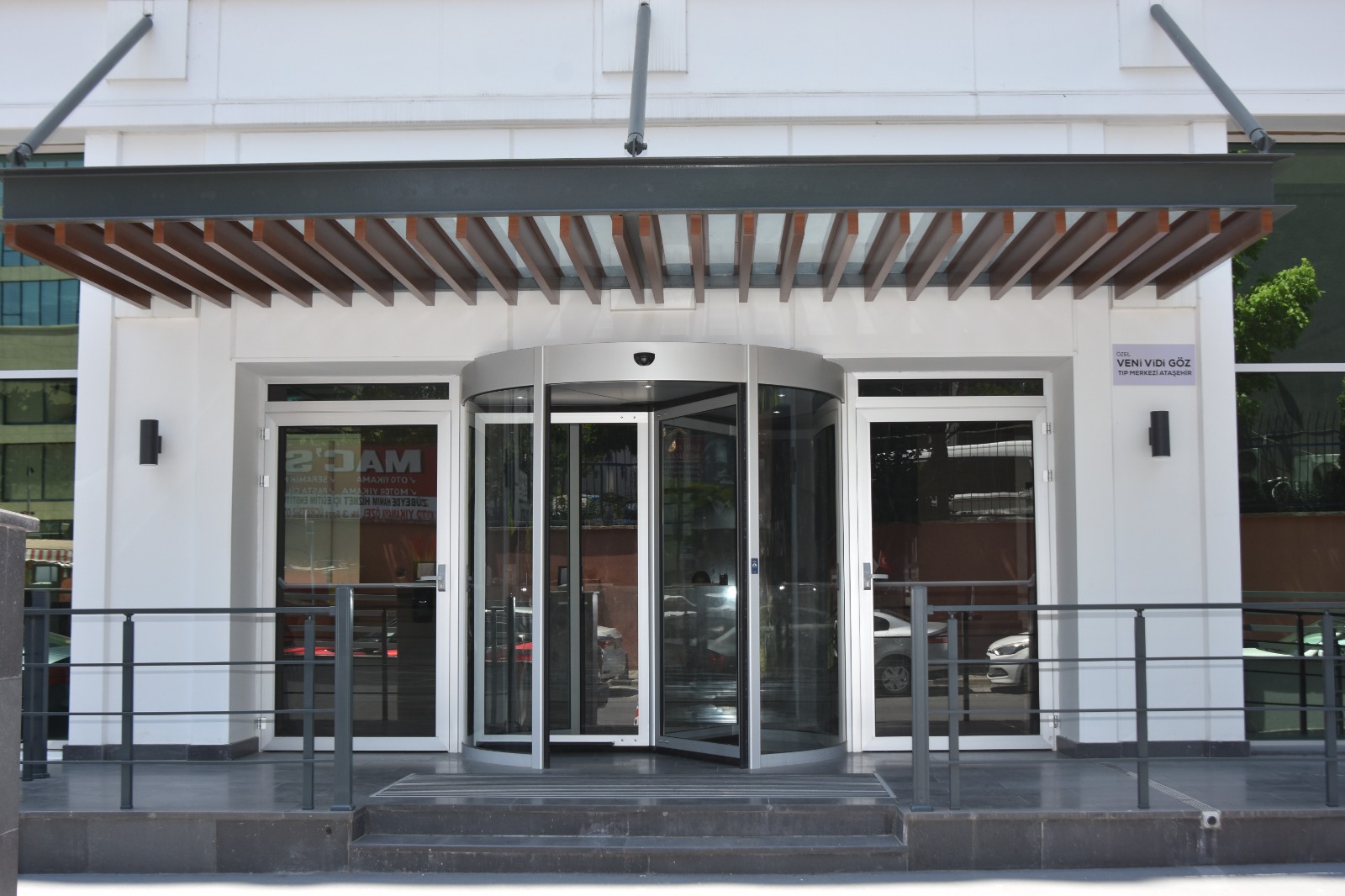

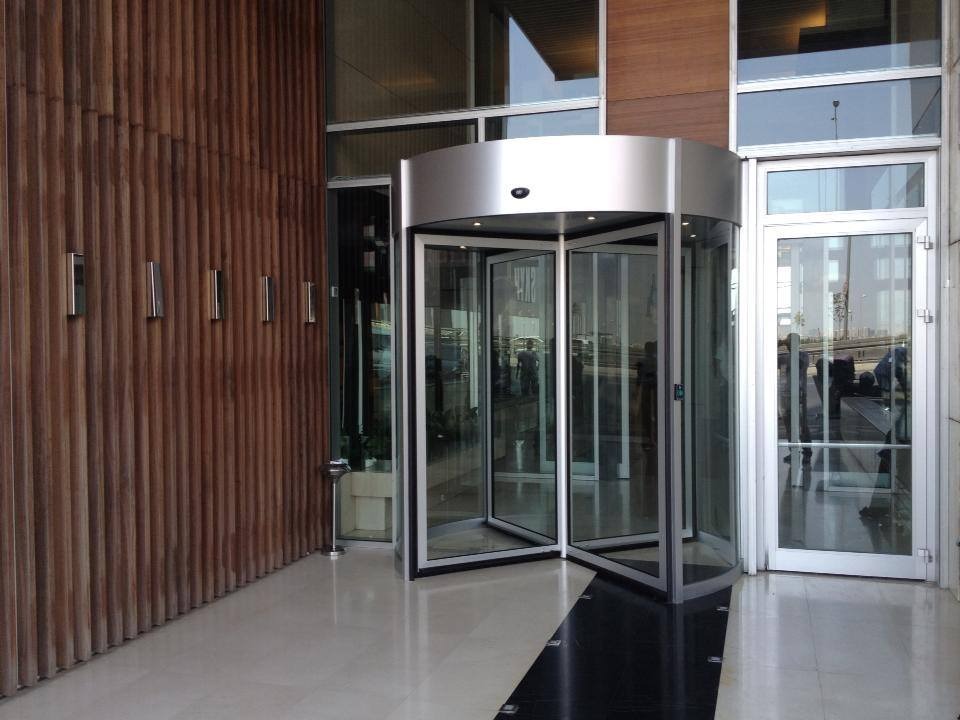

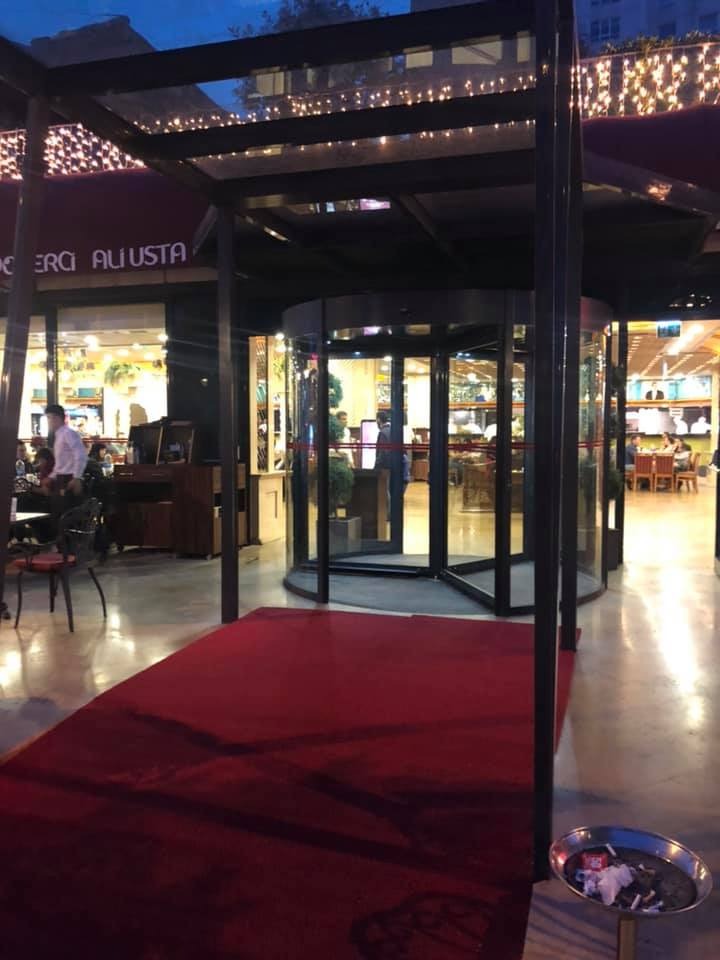

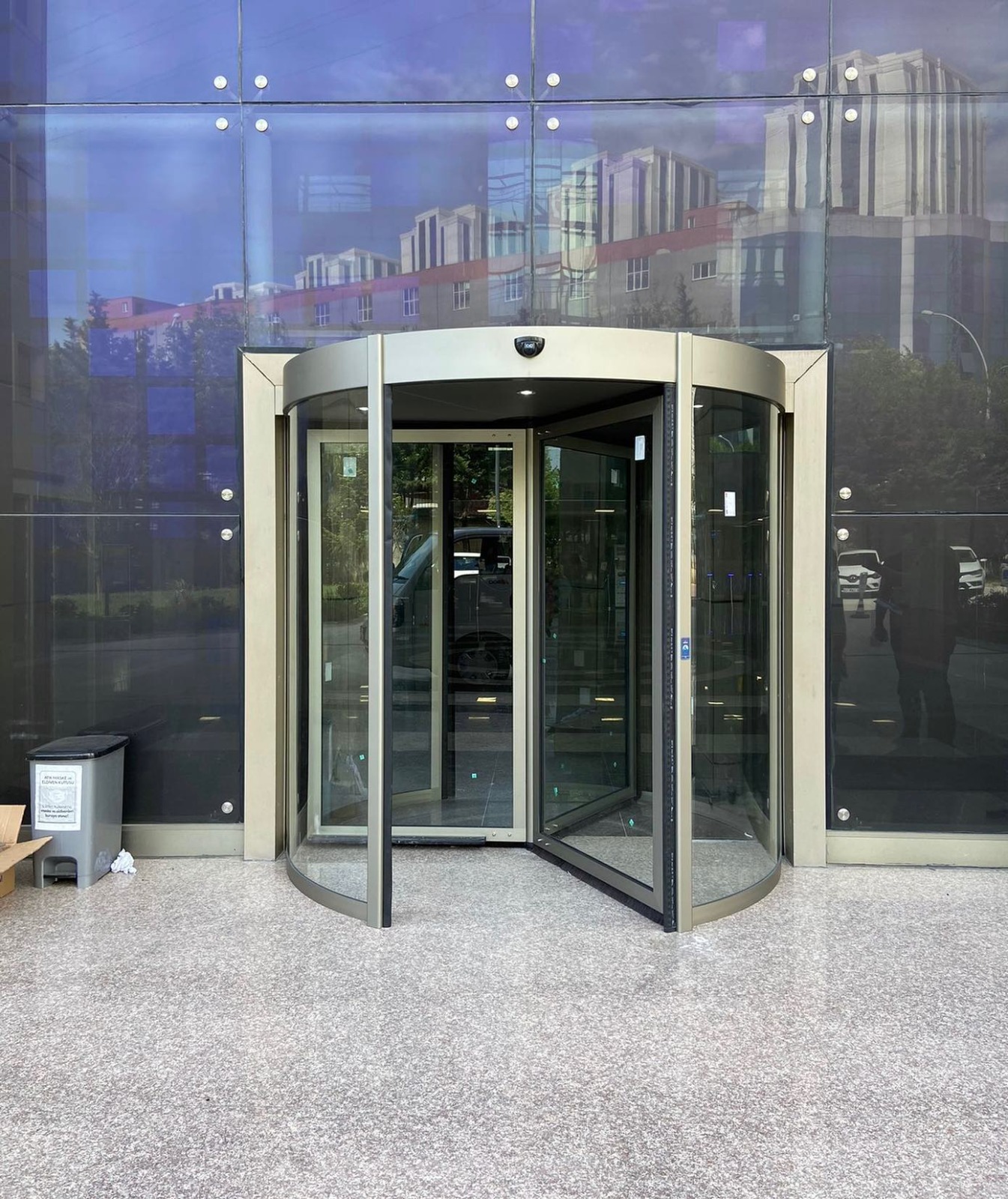

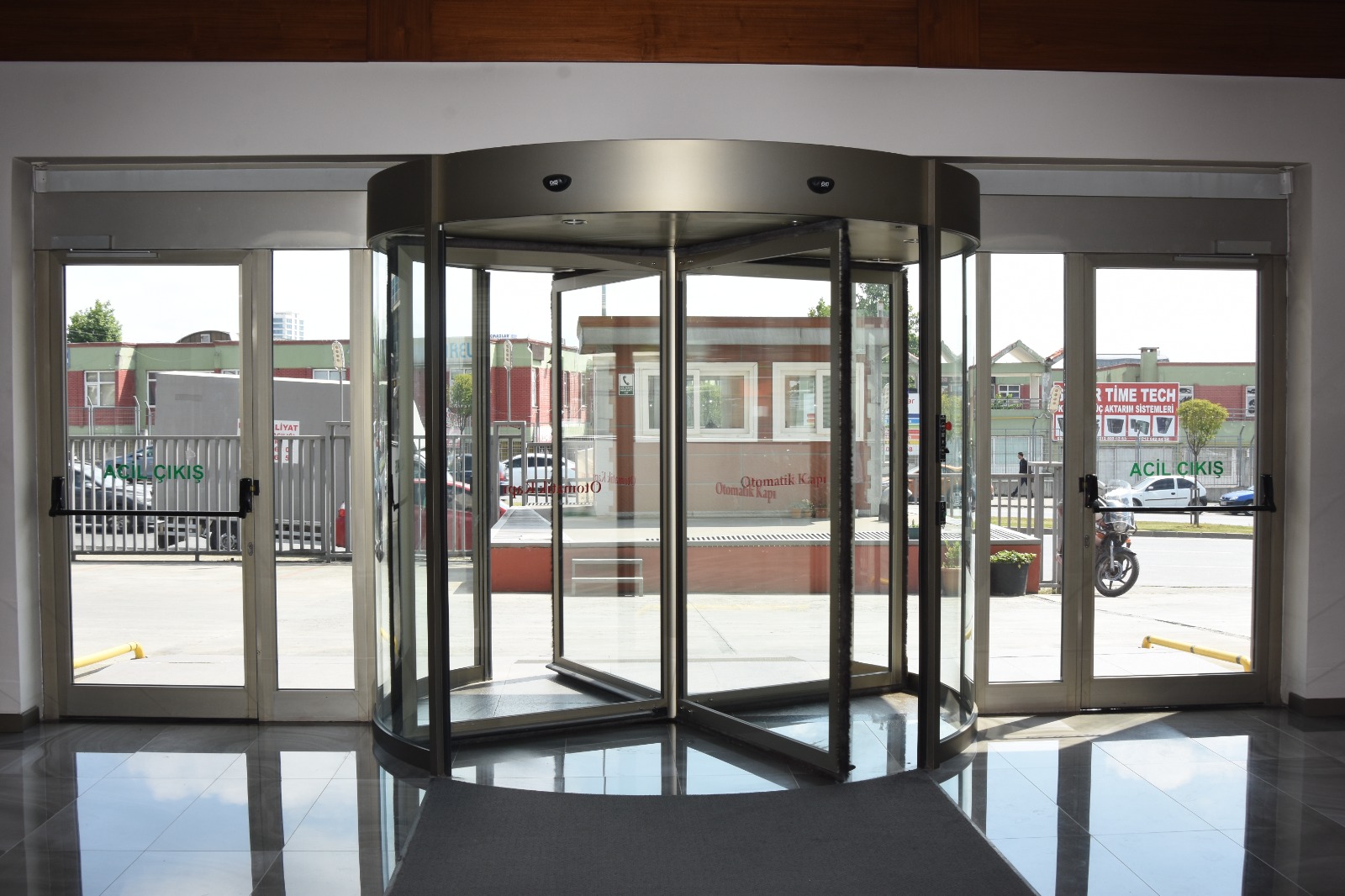

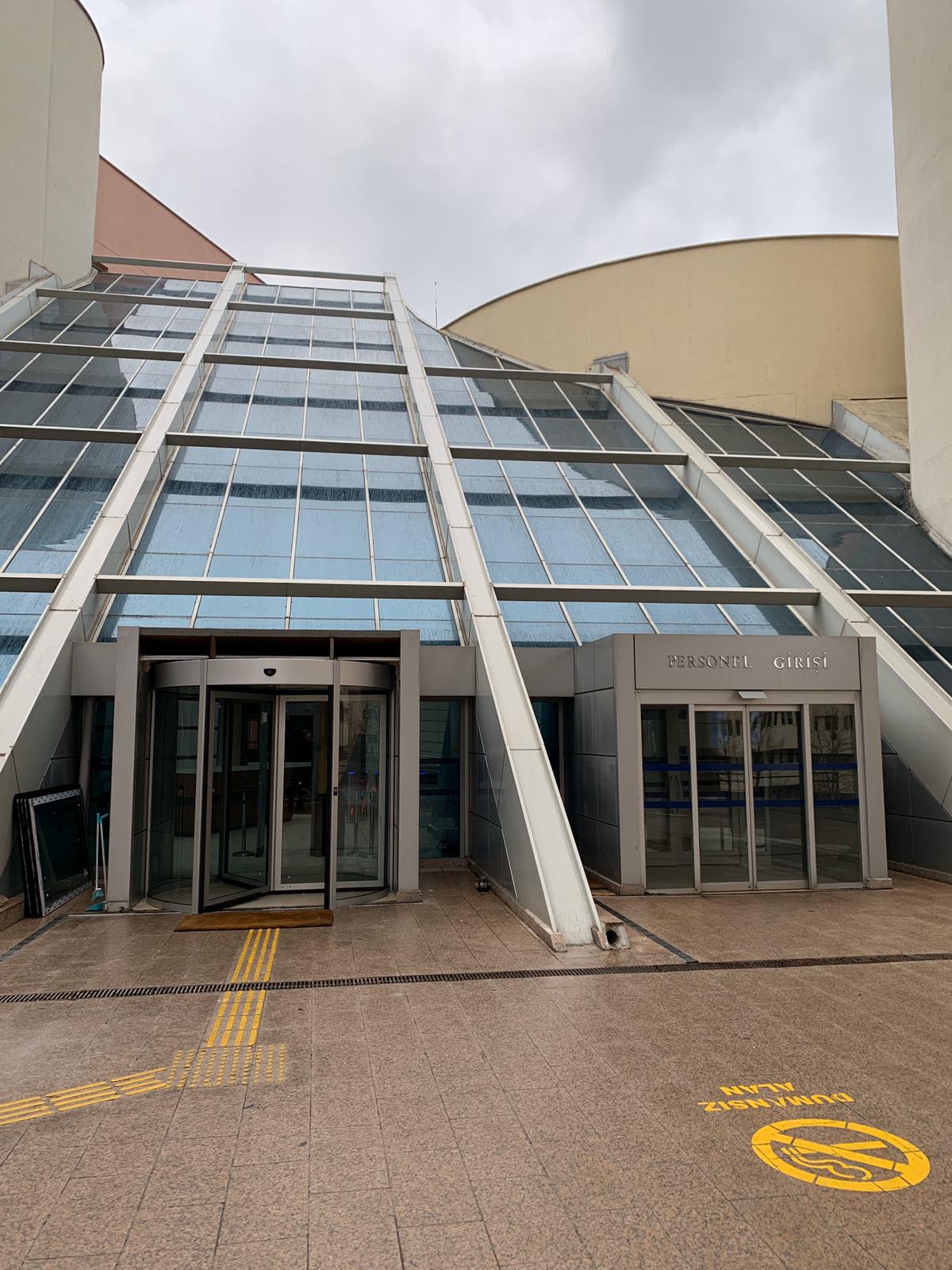

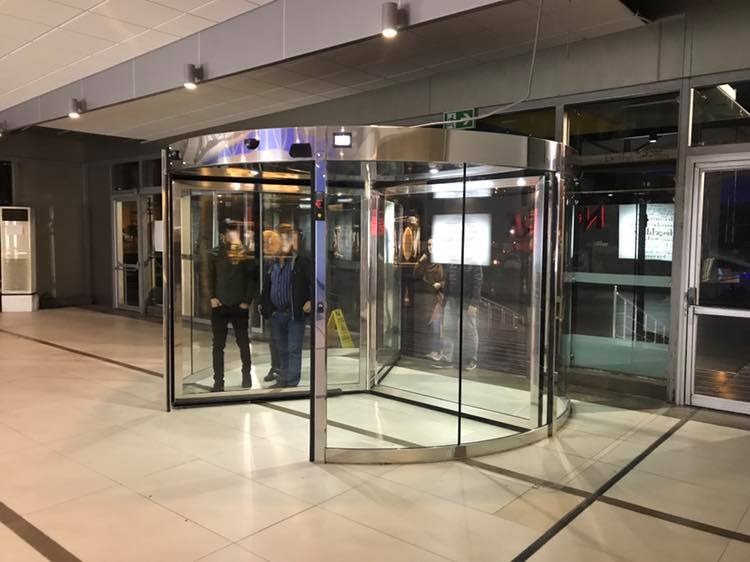

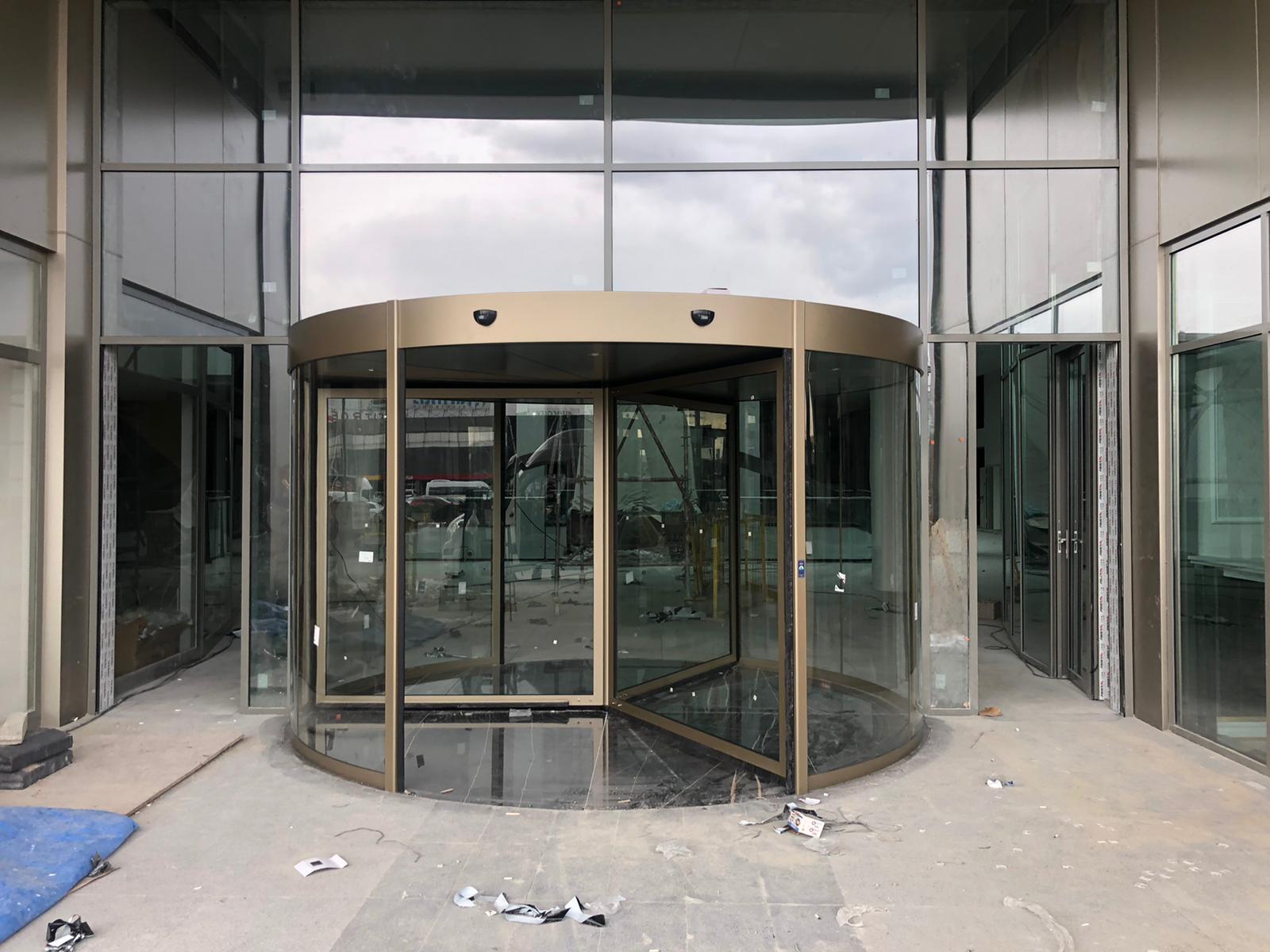

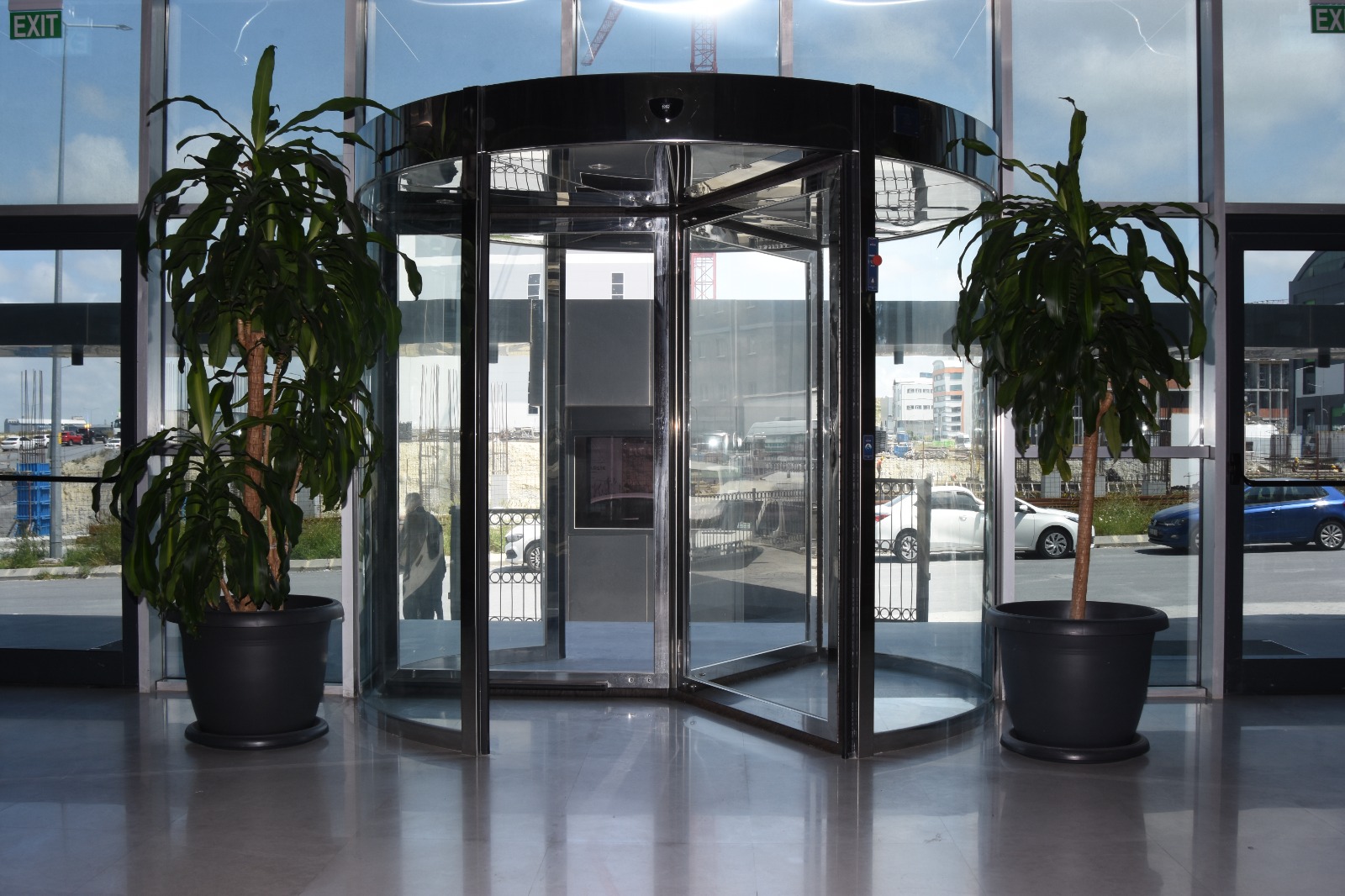

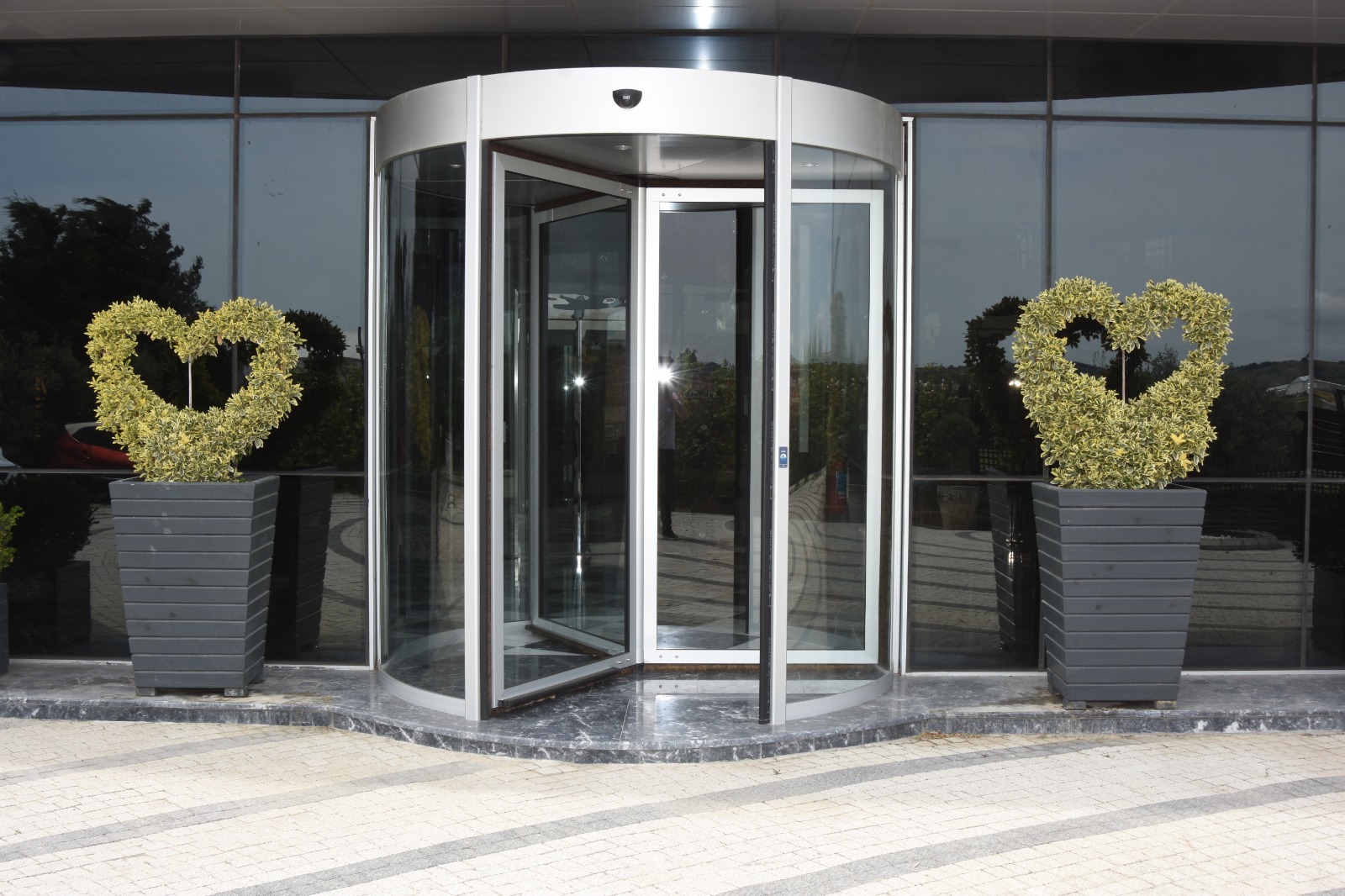

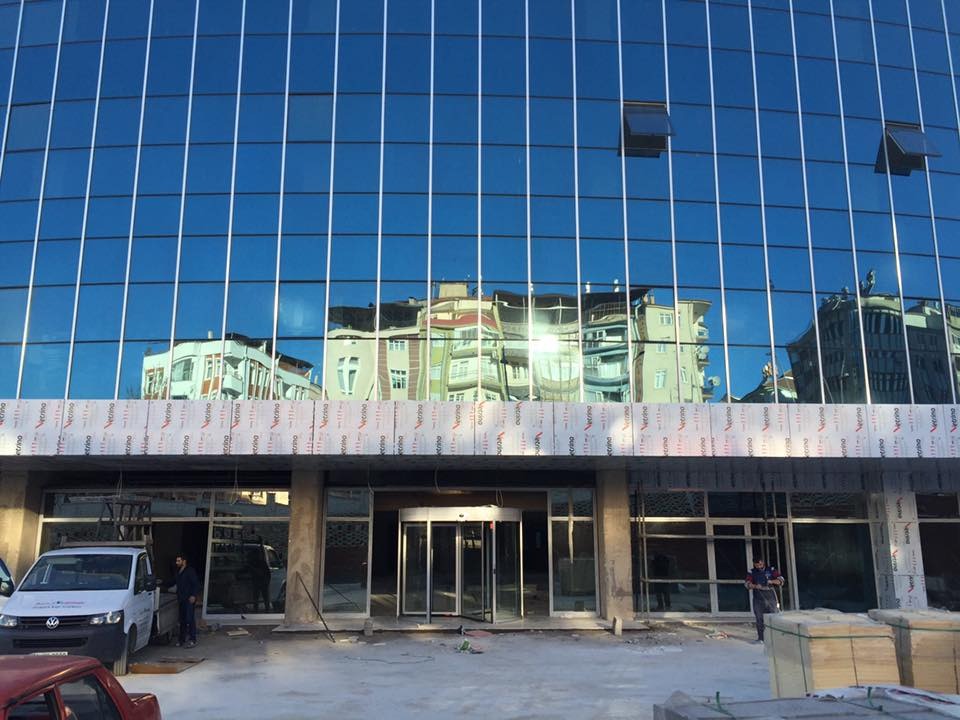

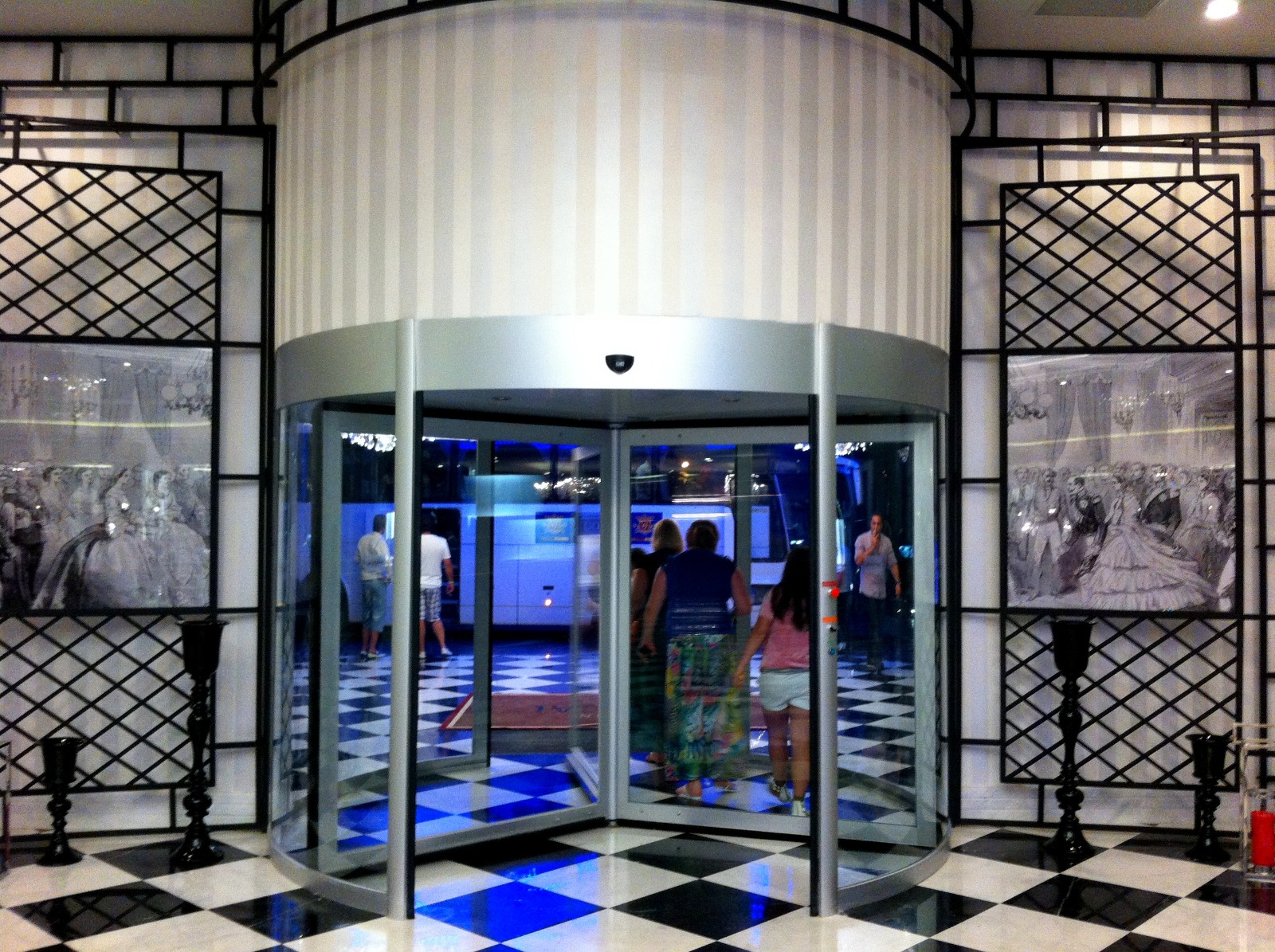

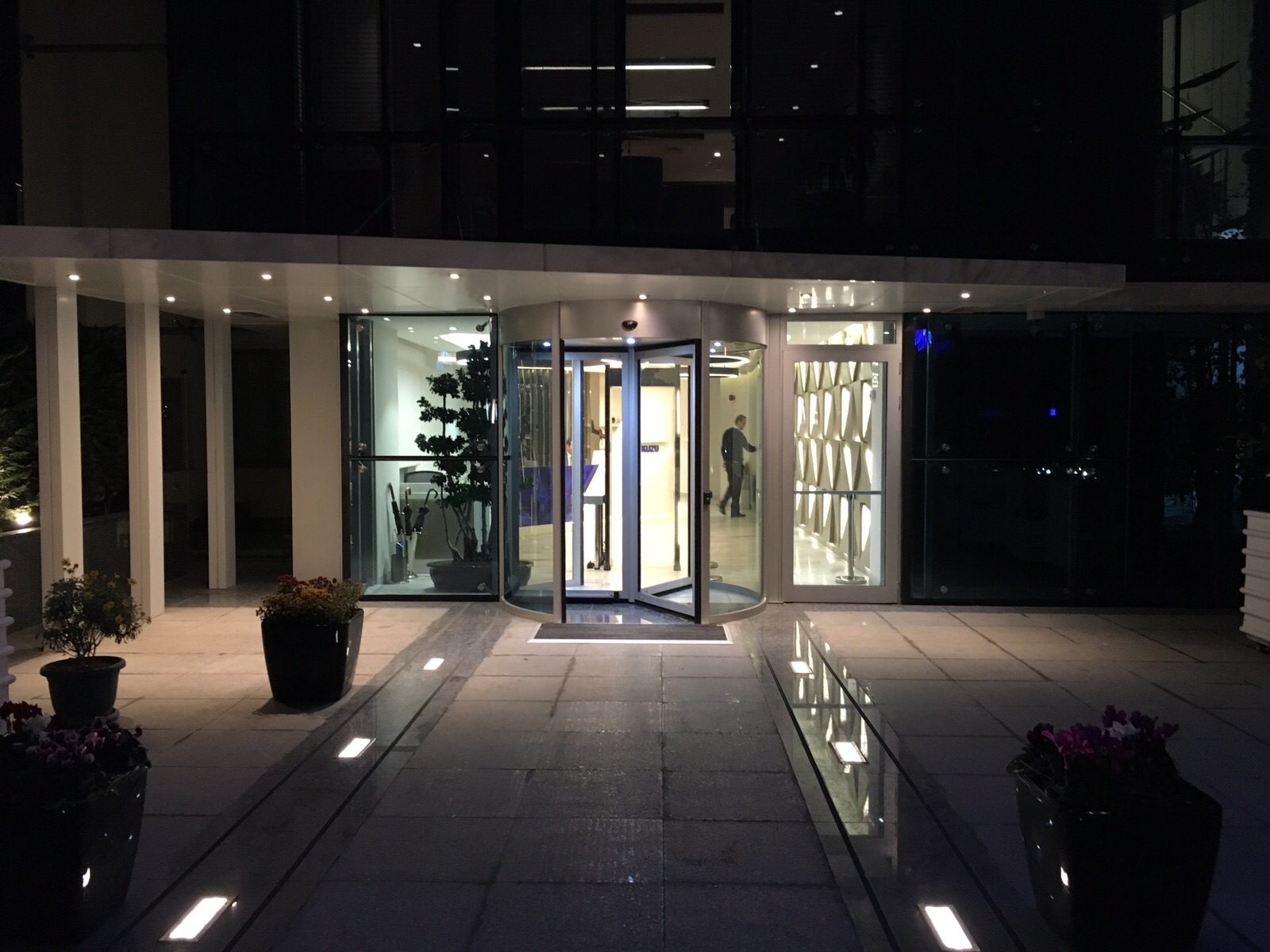

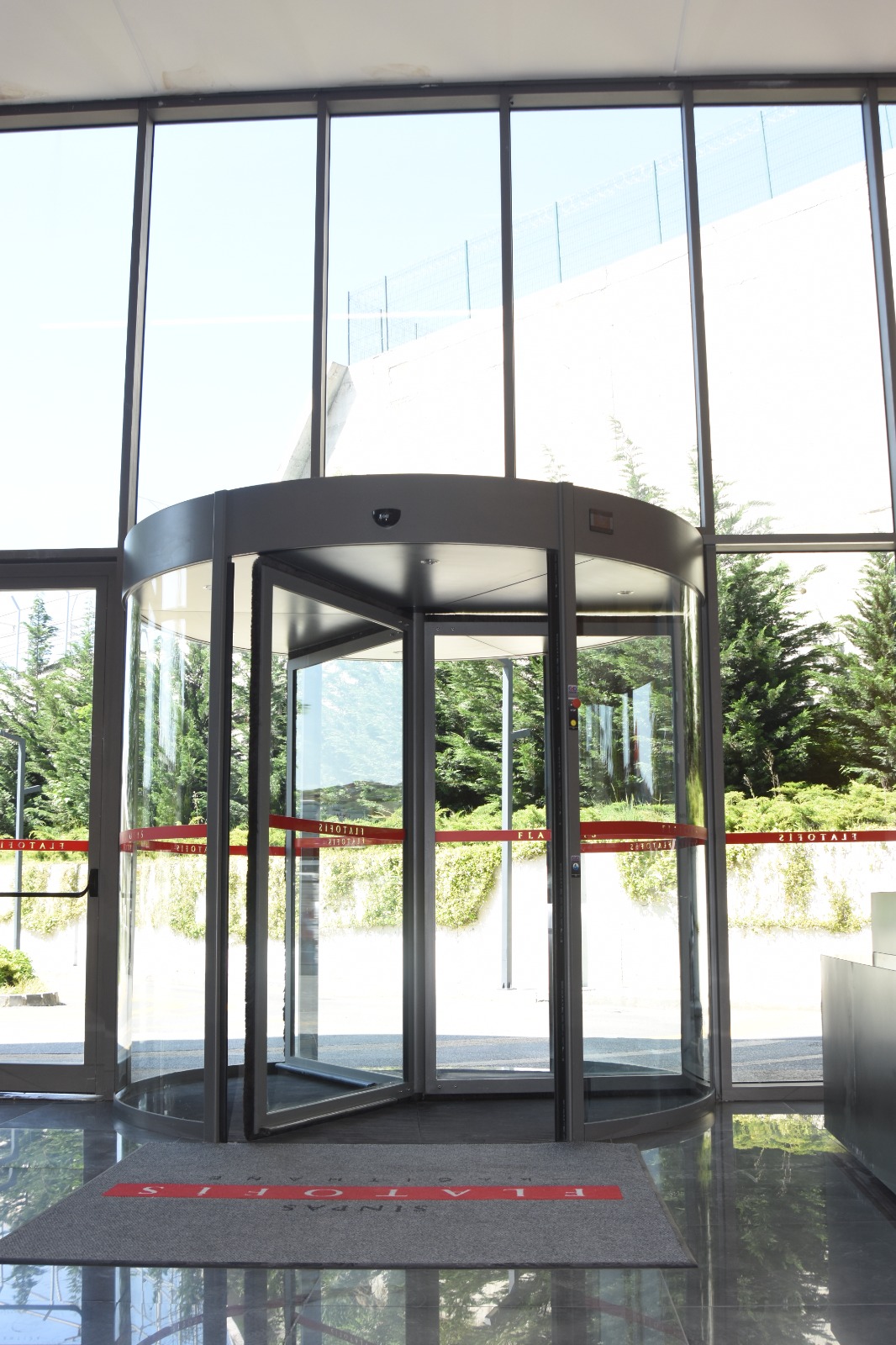

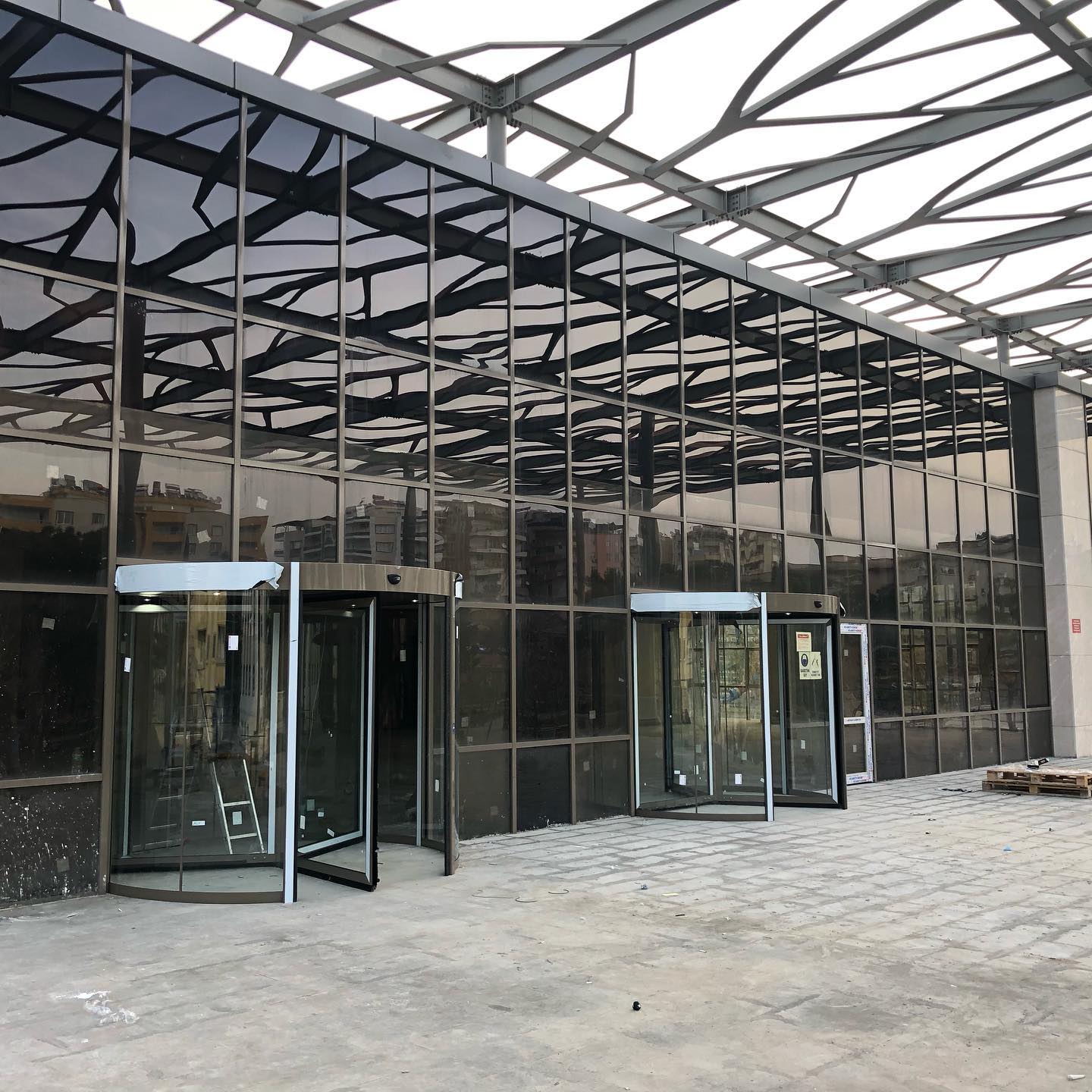

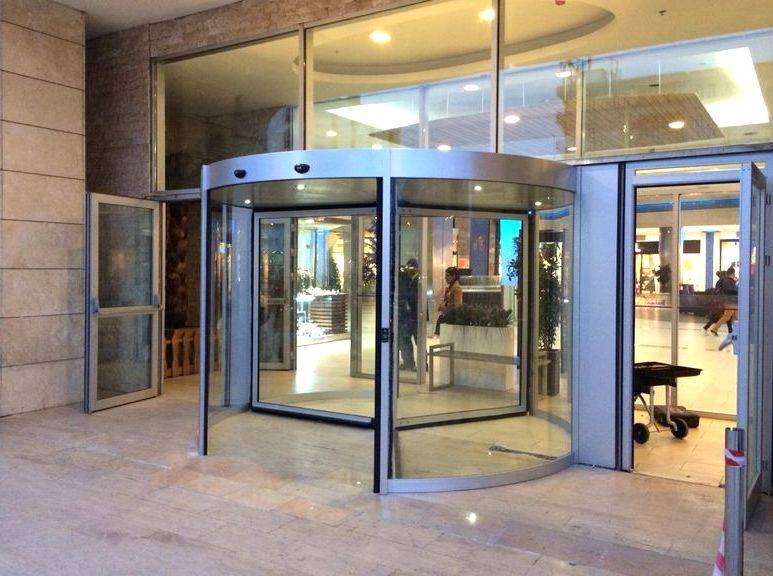

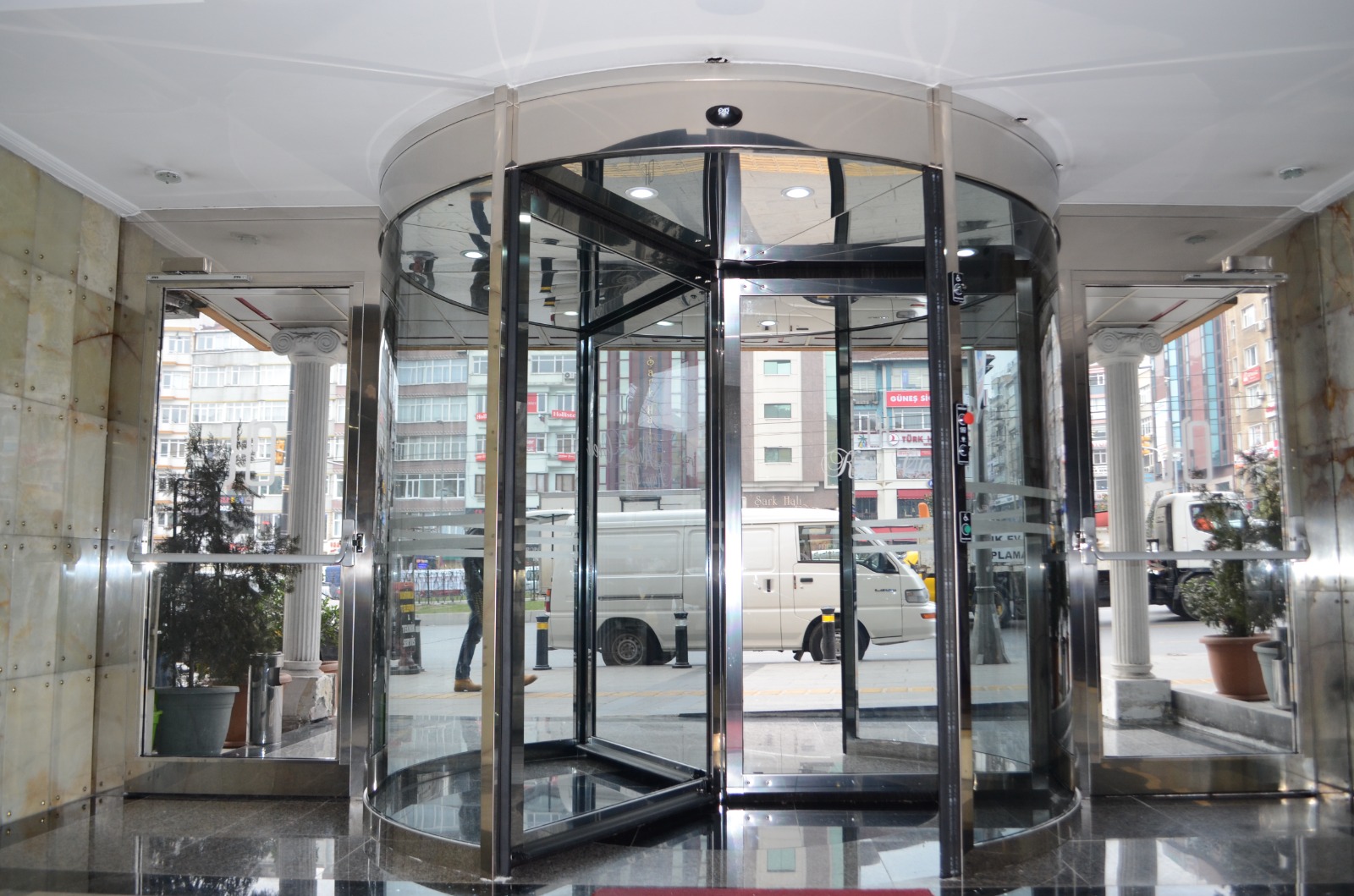

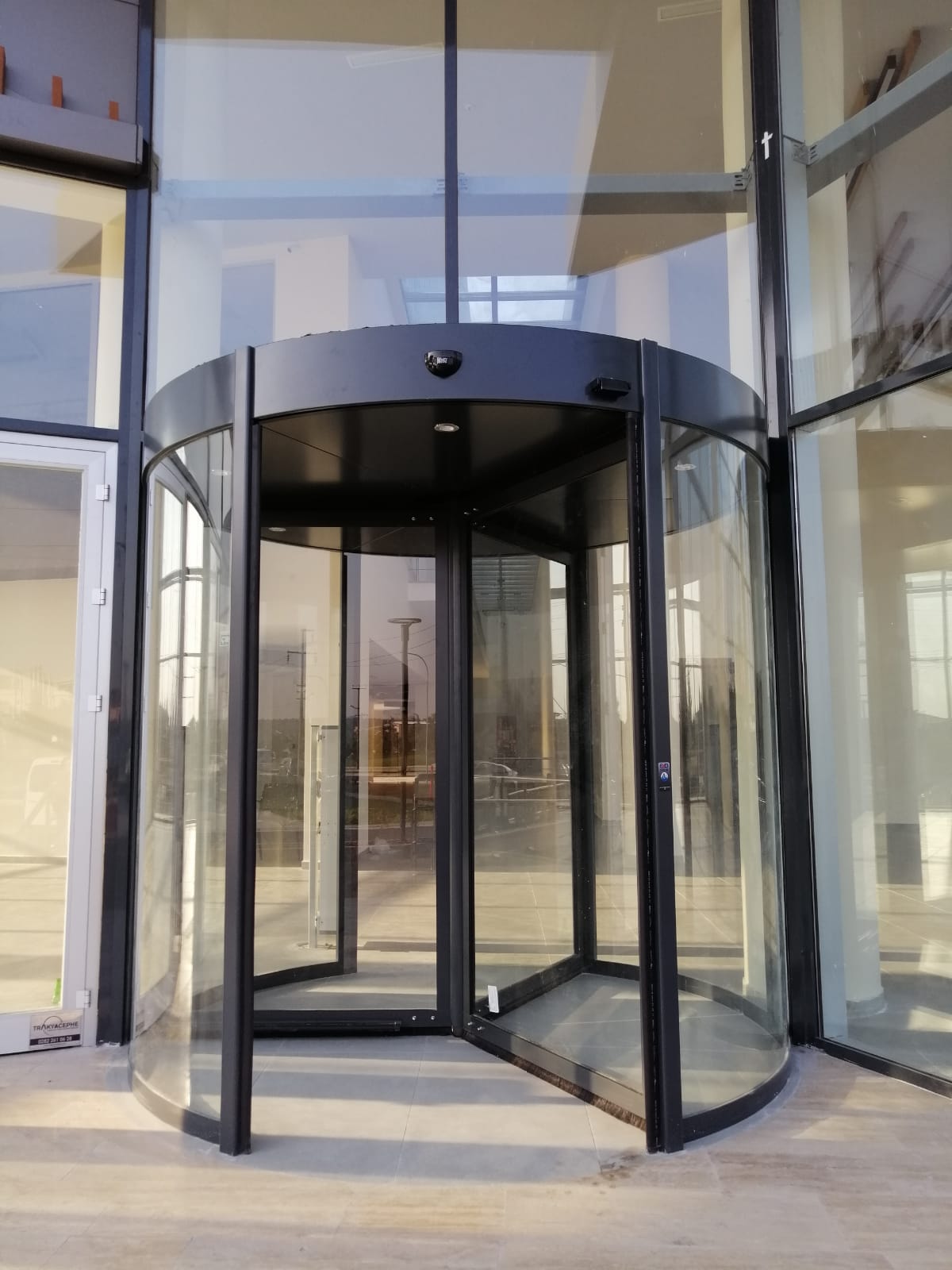

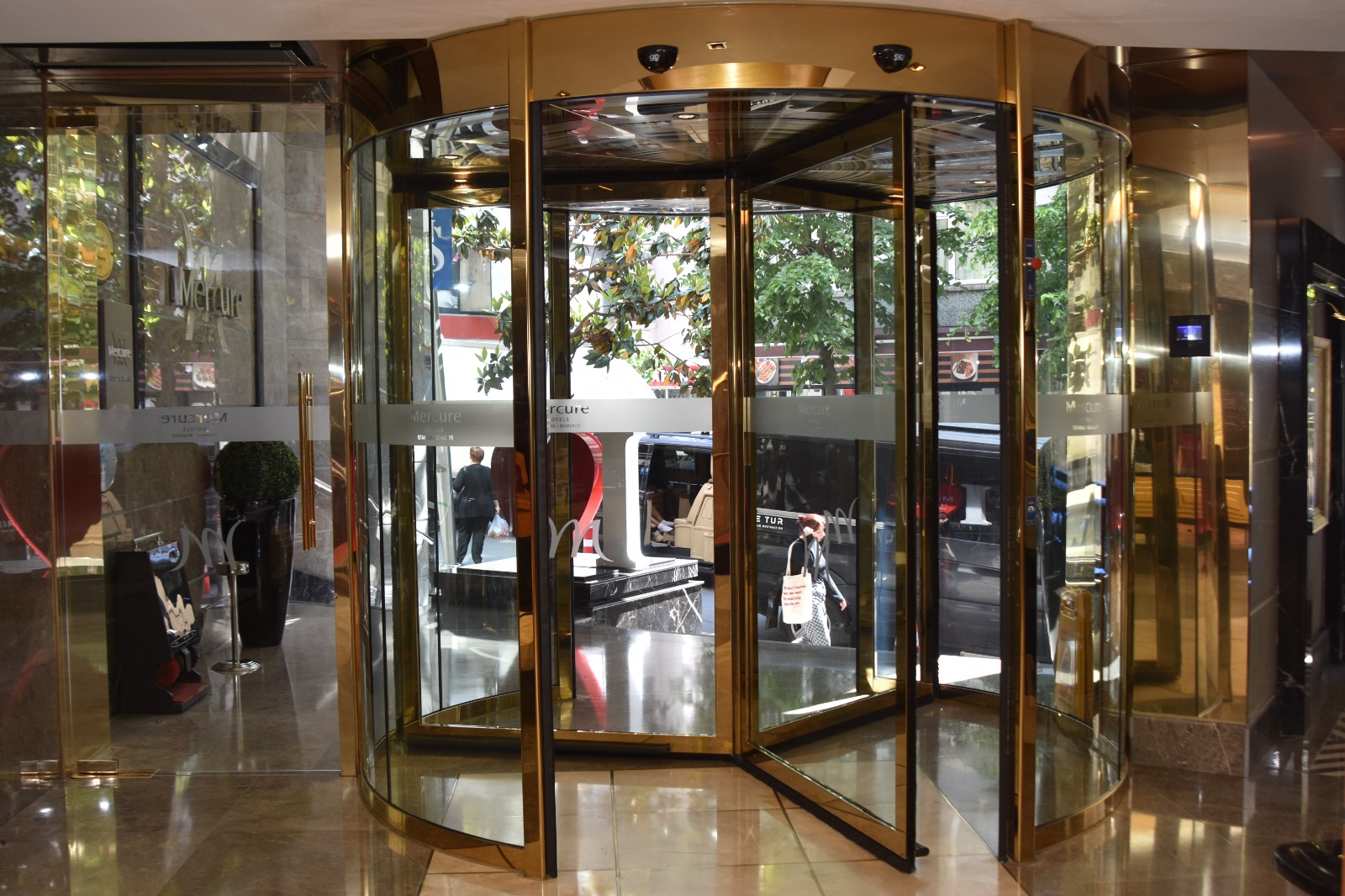

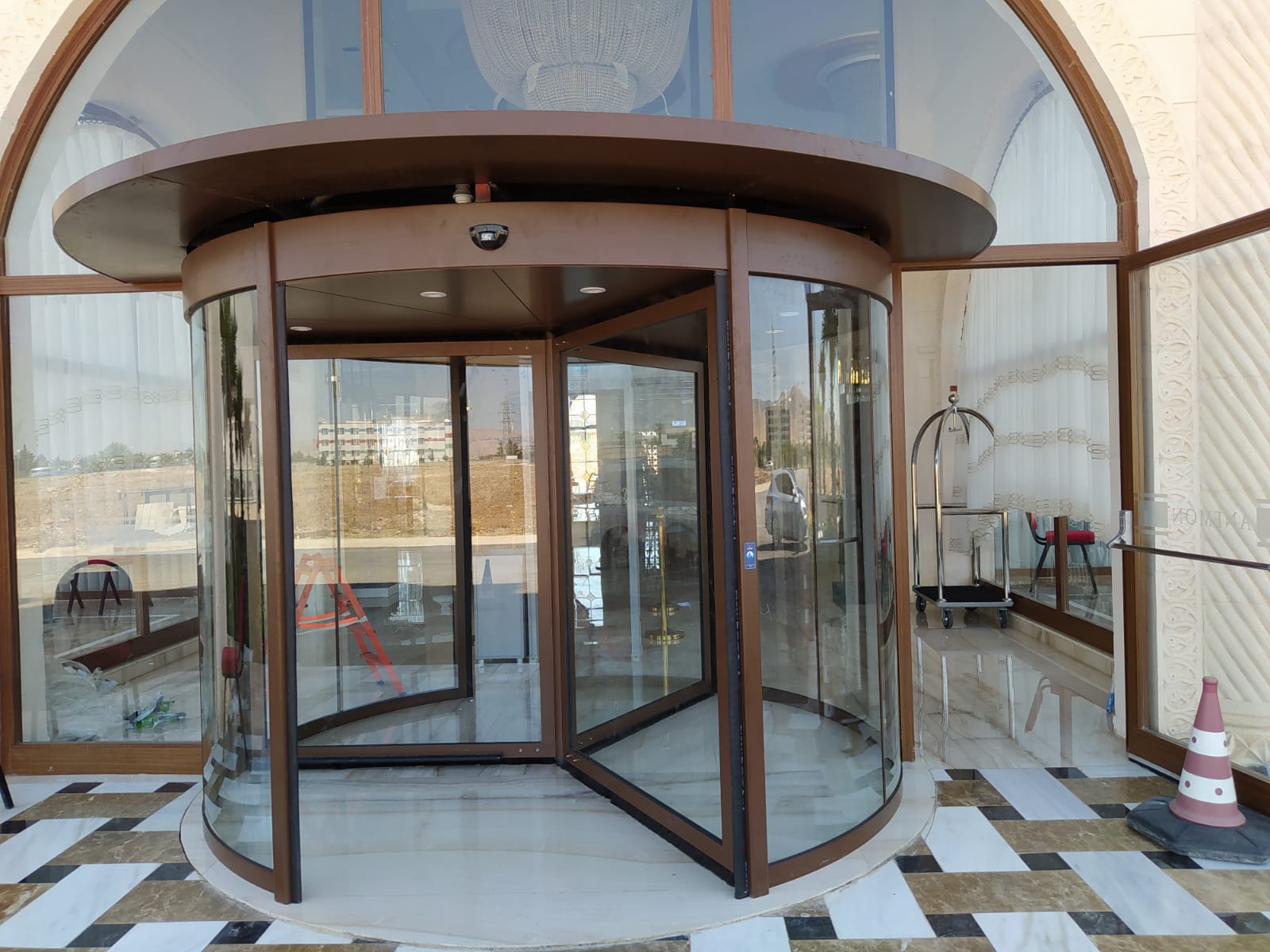

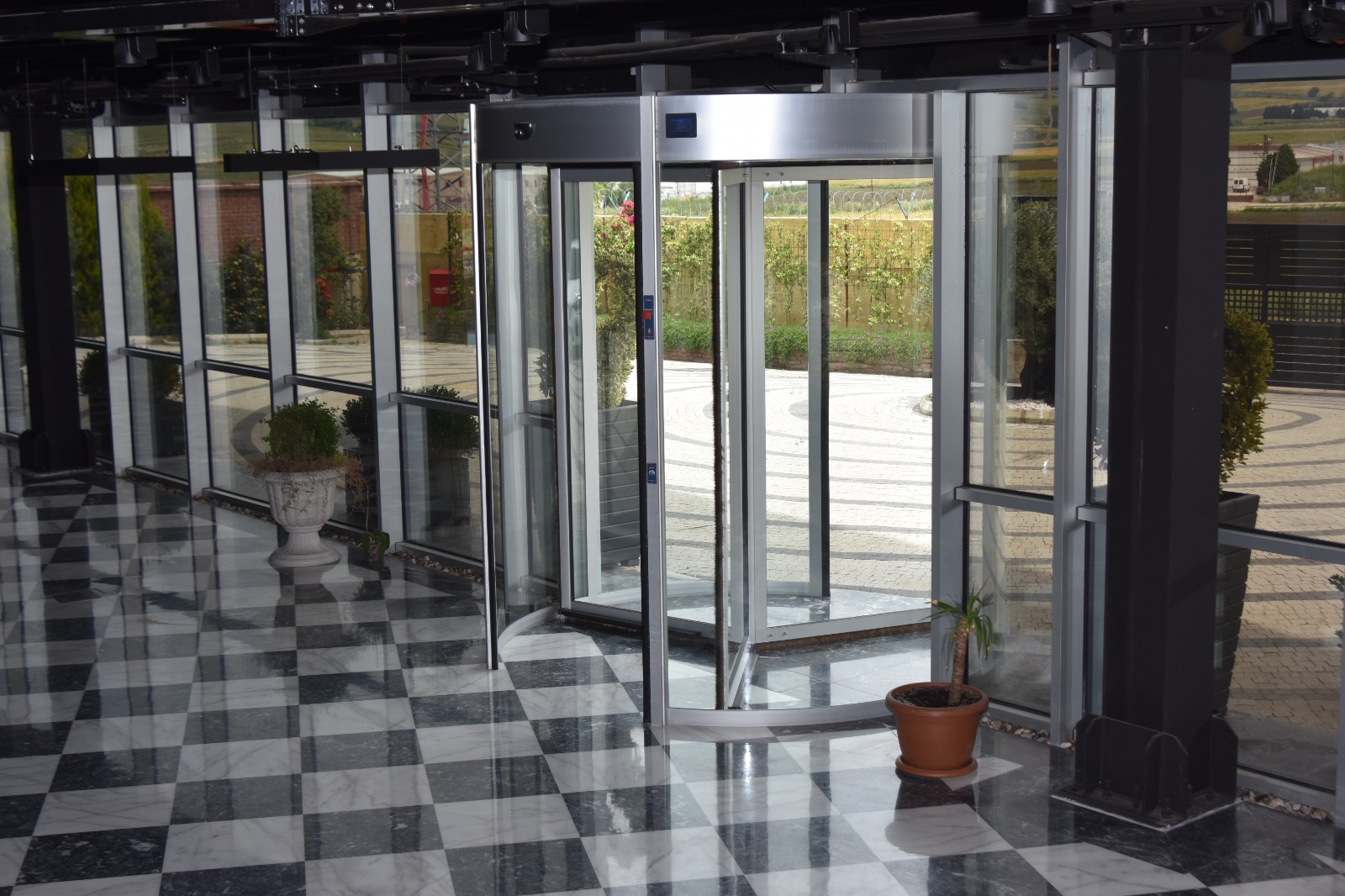

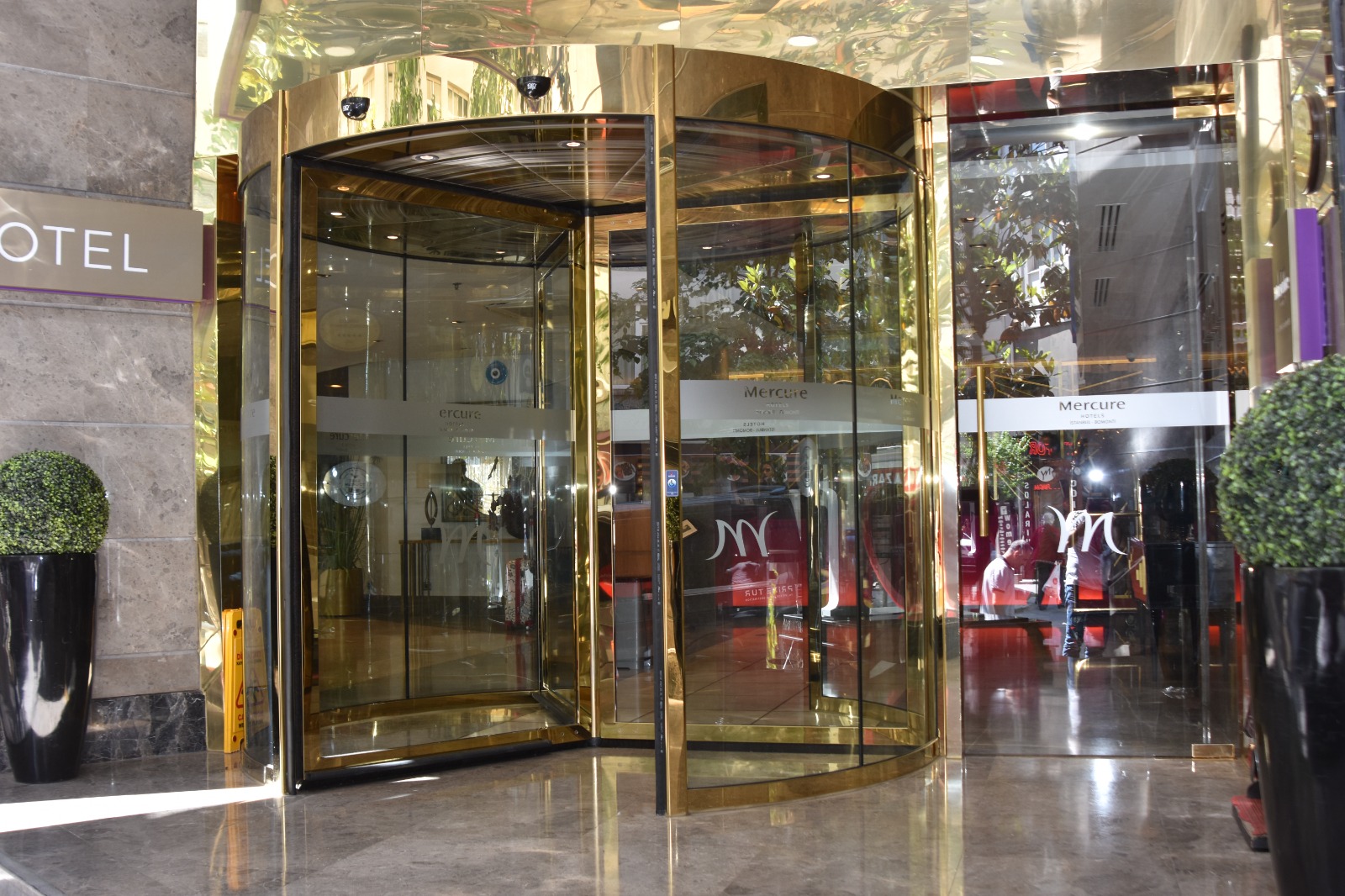

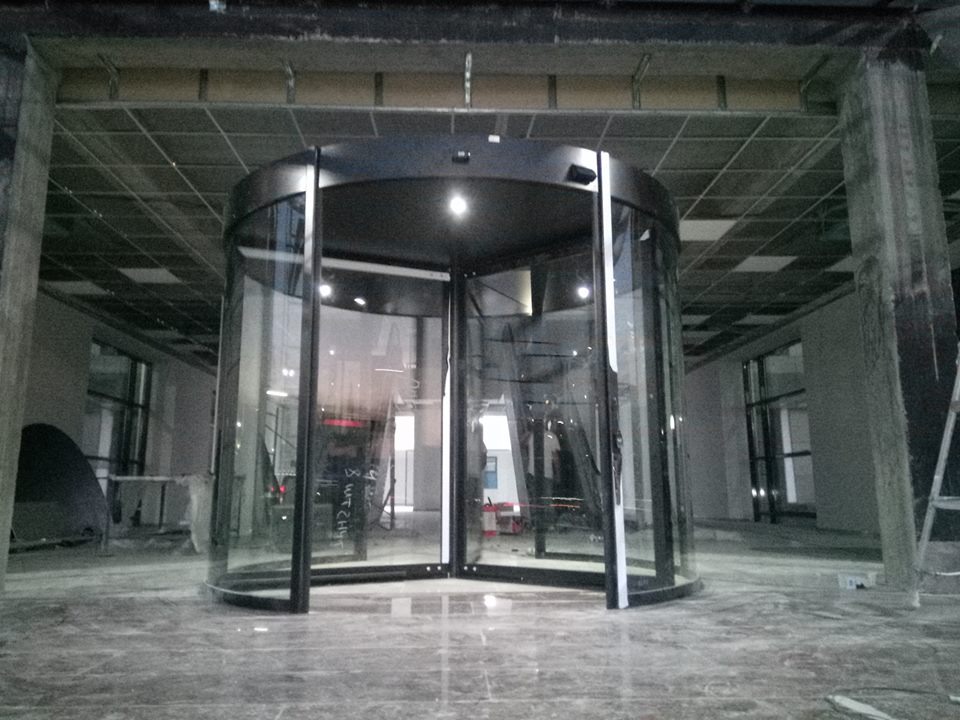

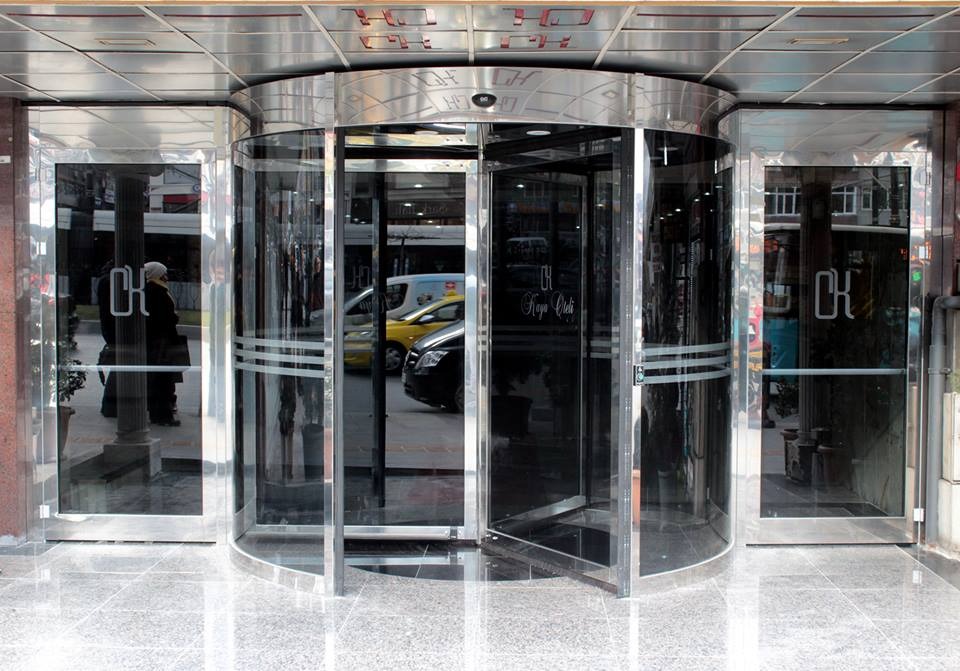

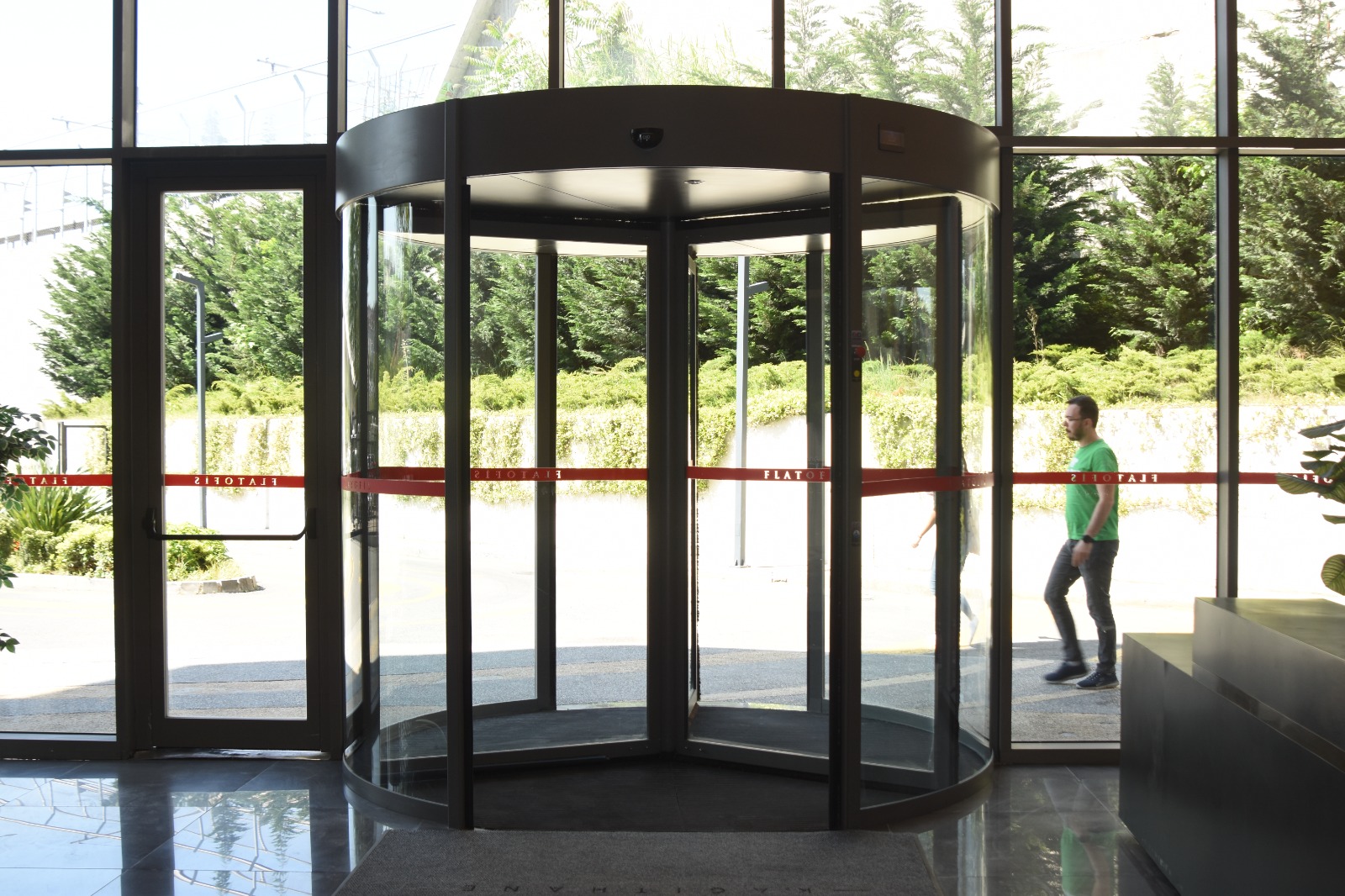

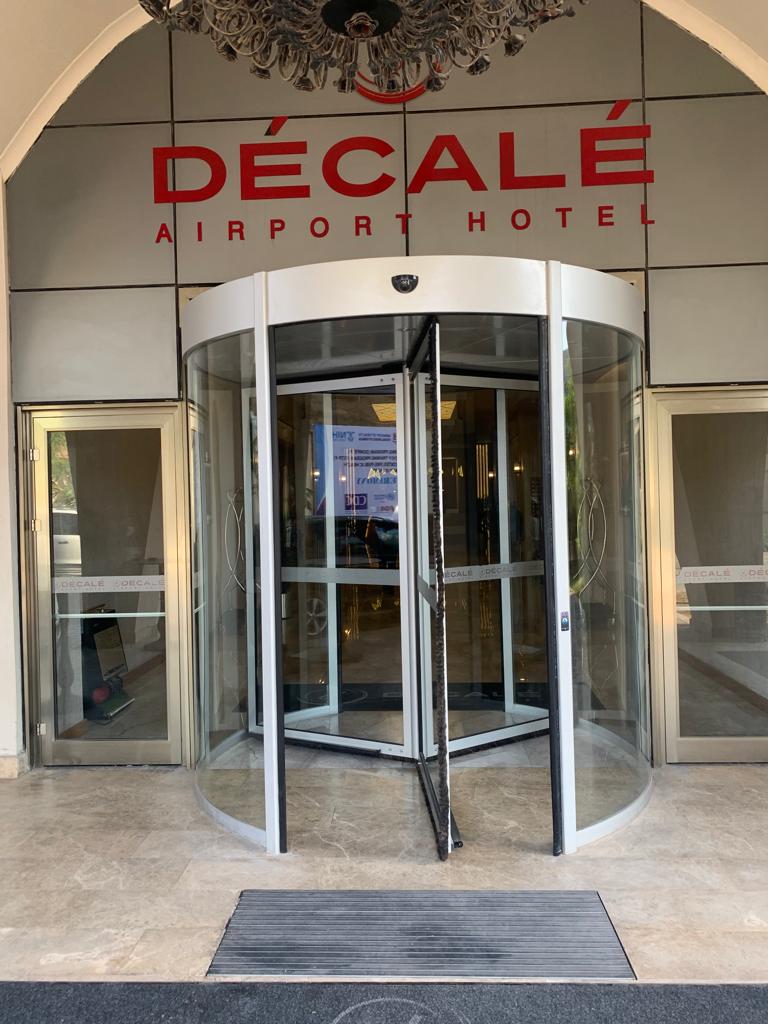

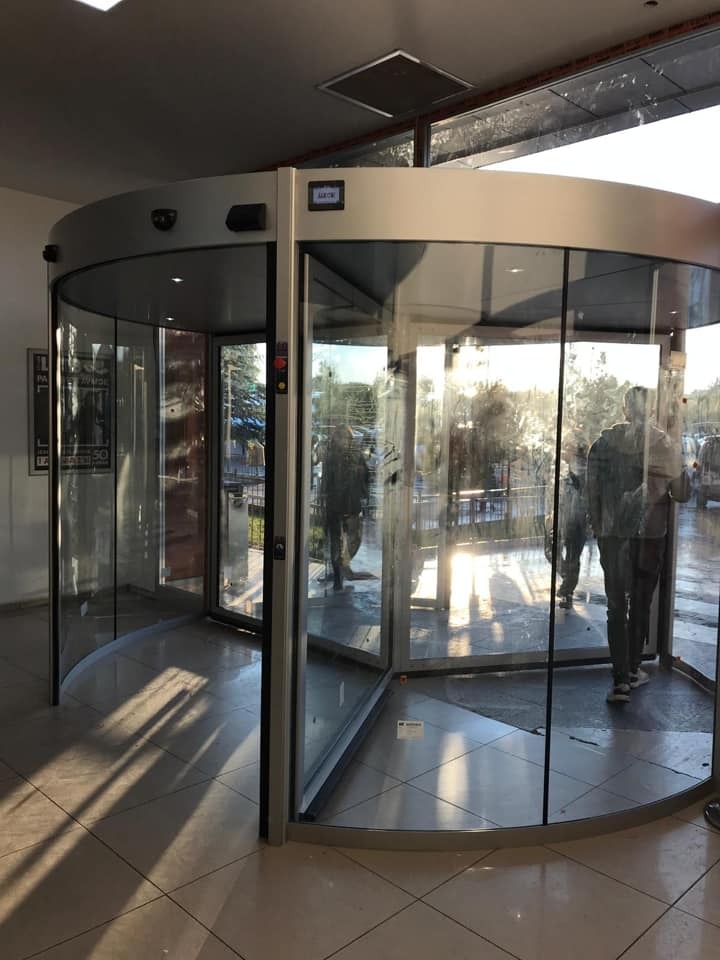

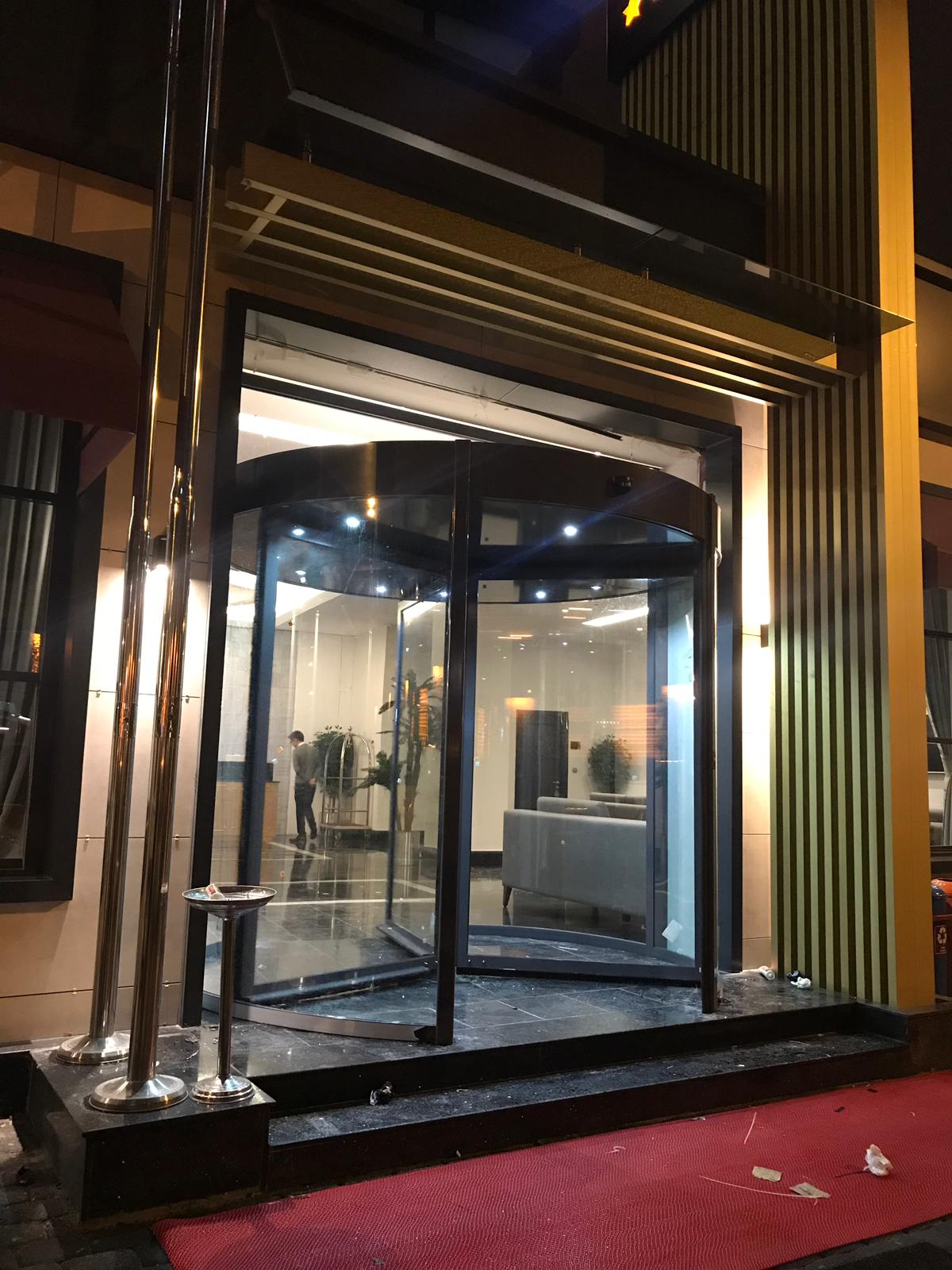

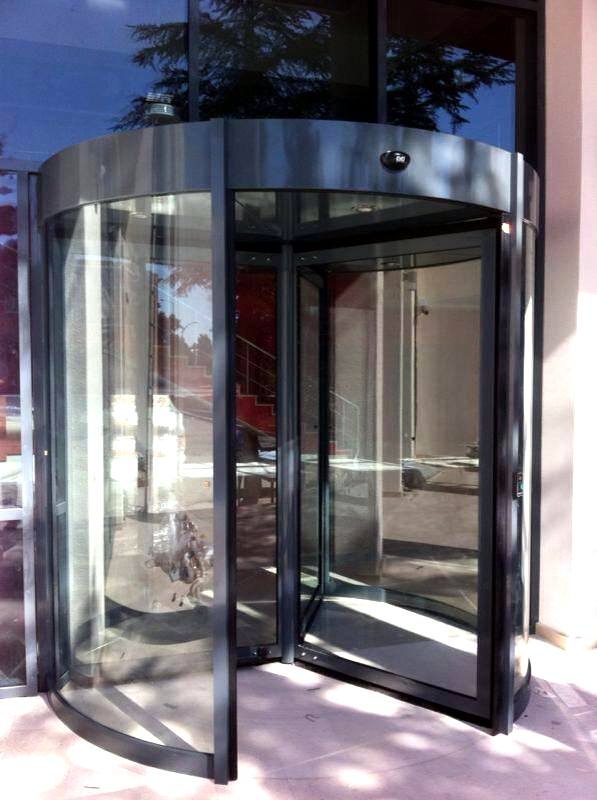

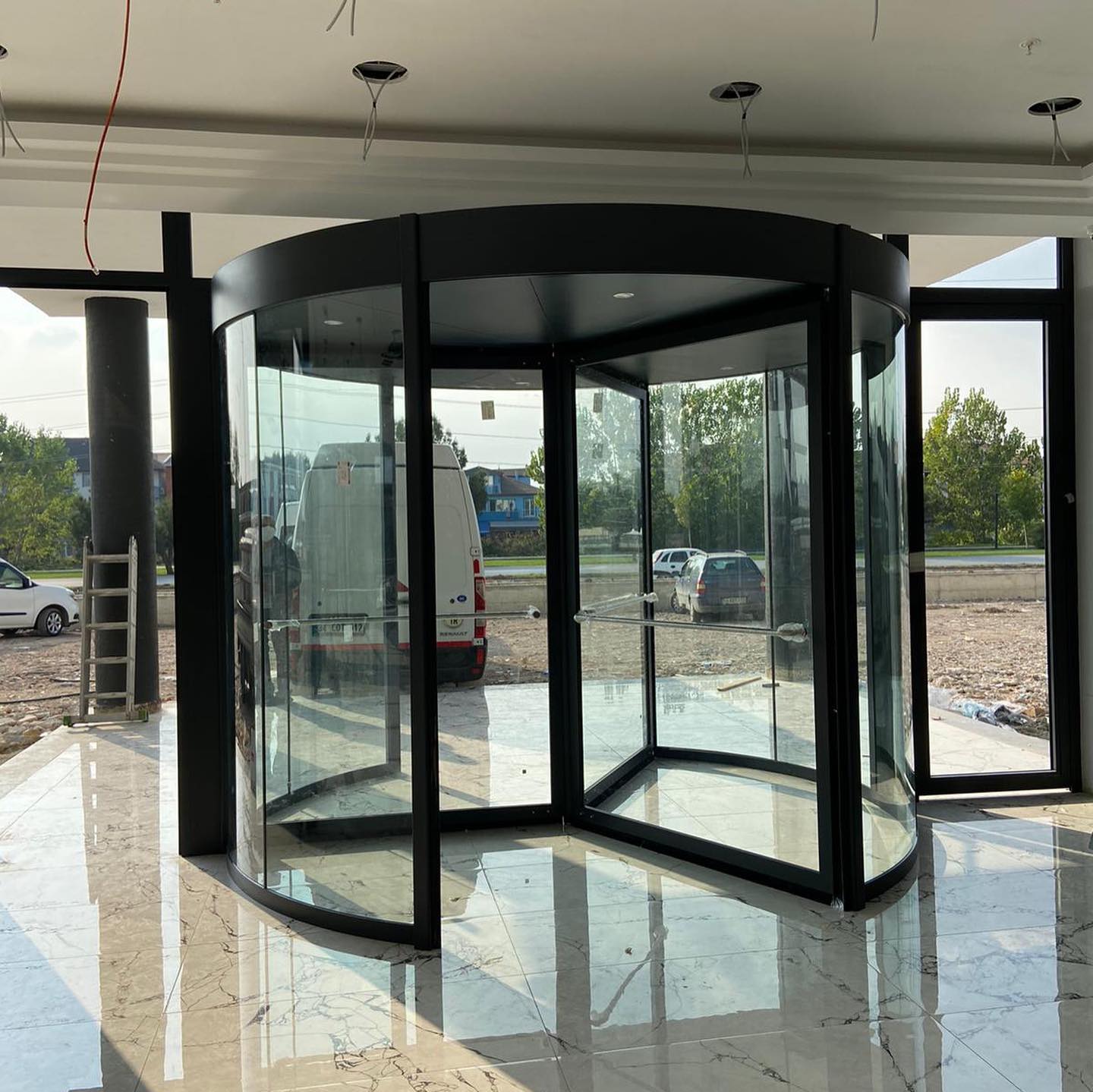

Standard Automatic Revolving Door

Standard Automatic Revolving Door are available in diameters ranging from 1800mm to a maximum of 5000mm.

A system that combines technology, comfort, and elegance. Thanks to its high insulation against factors such as energy savings, noise, dirt, dust, and heat, it complements your building both technically and architecturally with its stylish appearance. It provides easy passage.

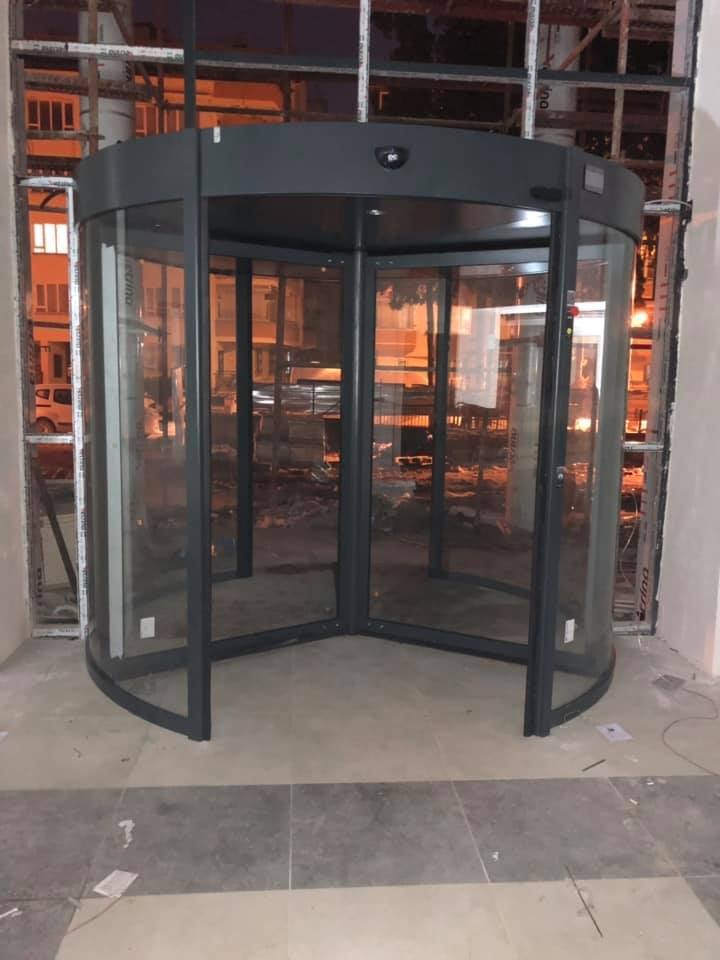

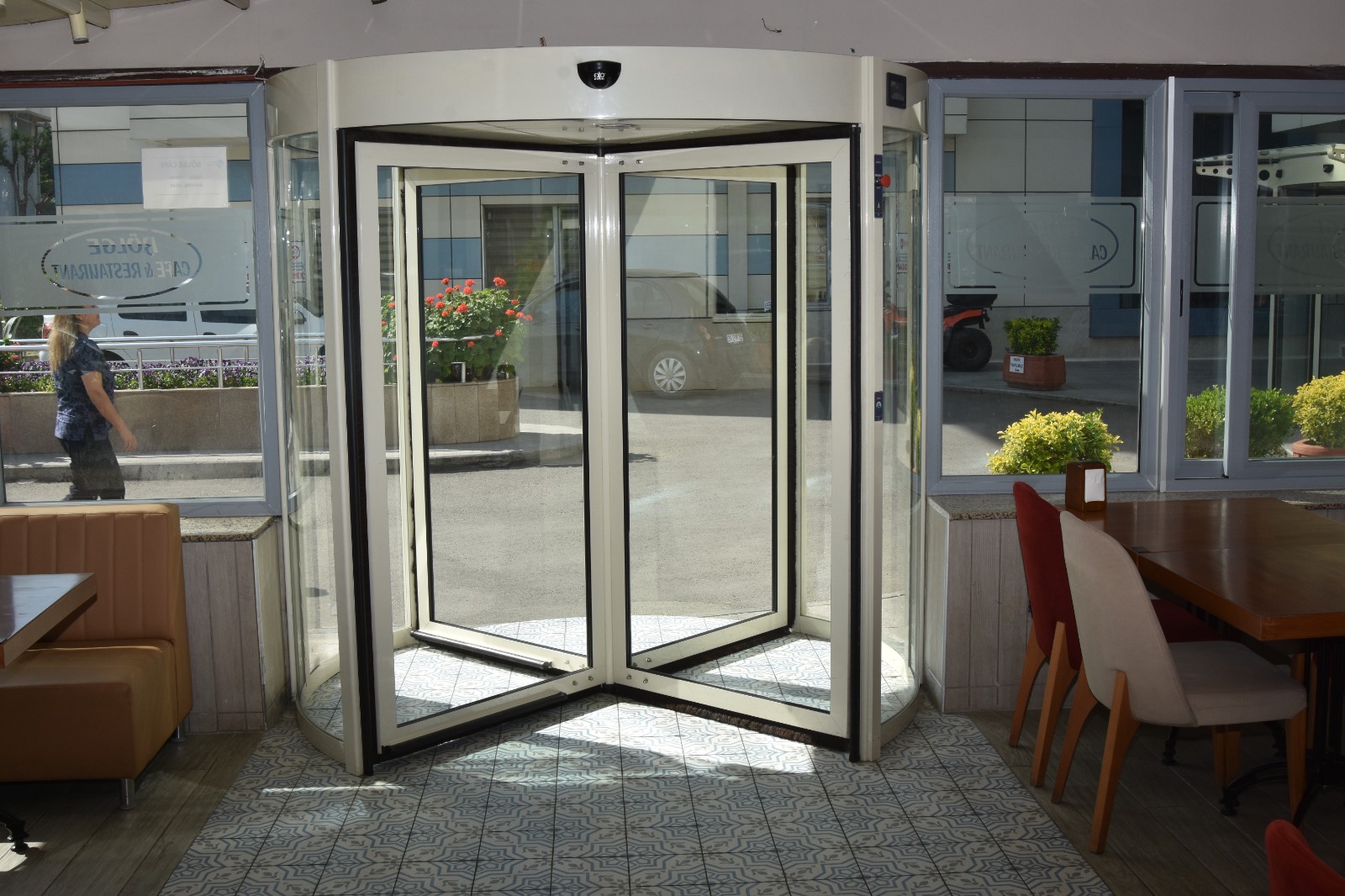

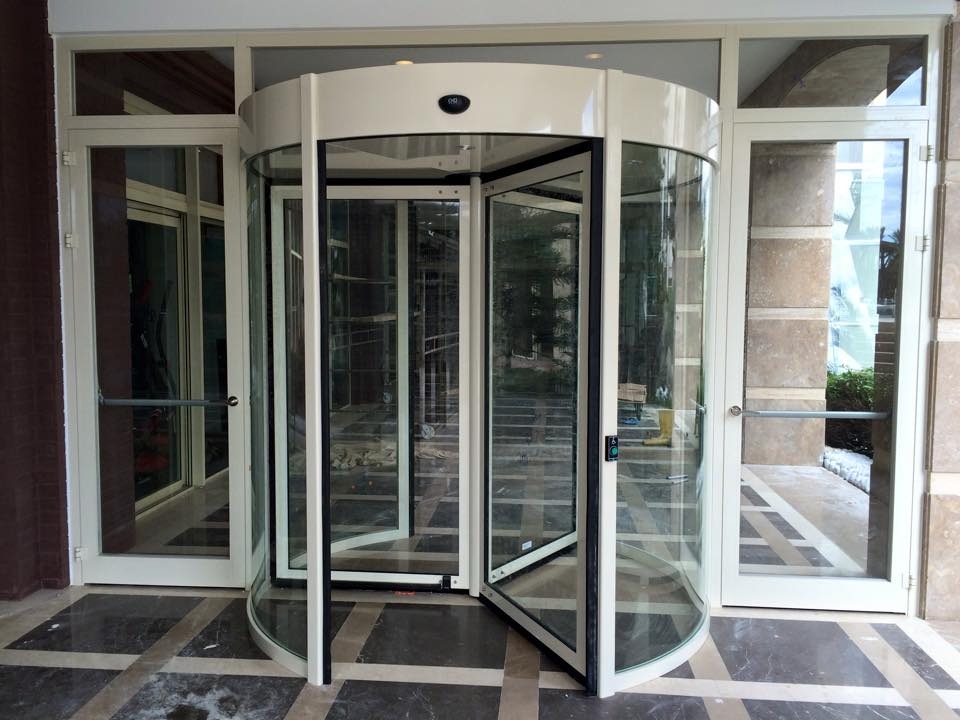

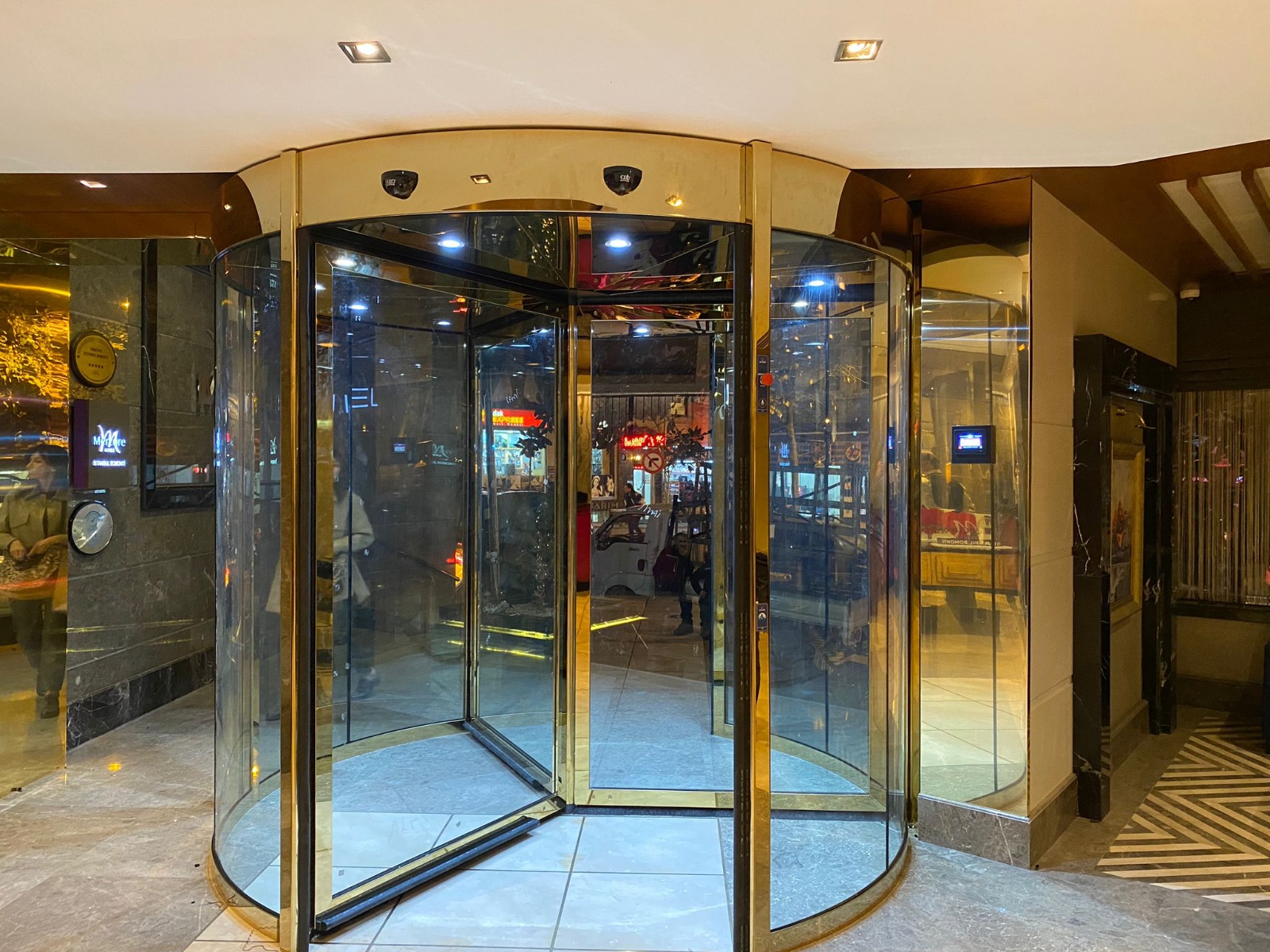

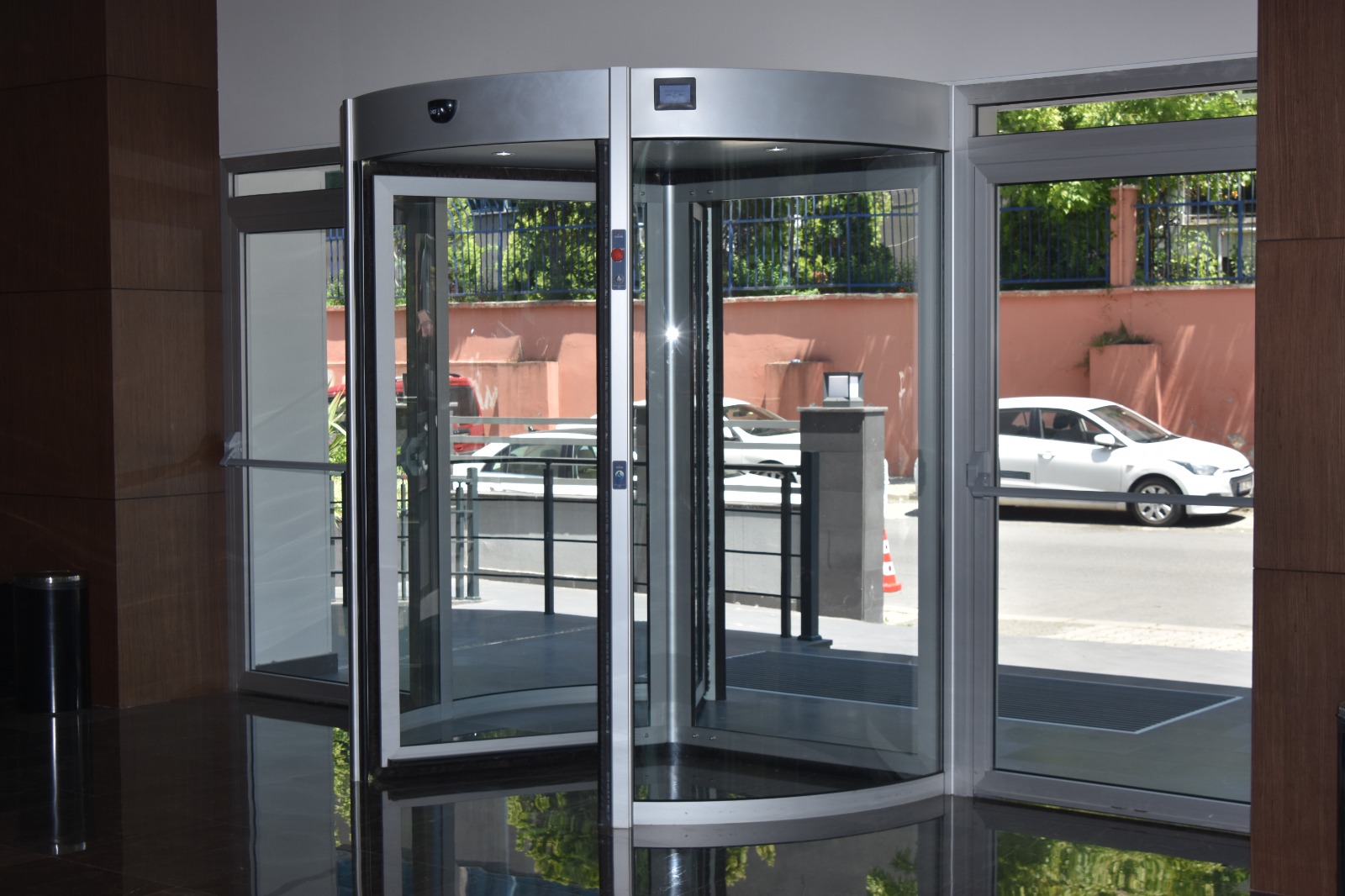

Exodoor Automatic Revolving Doors can be manufactured with two, three, or four wings, with various color and surface options, thanks to their unique profile system. Two-wing Revolving Doors, in particular, are an ideal solution in places where people need to carry luggage and other bulky items, as they offer the widest possible interior space. Three-winged models create a larger regional space, while four-winged models provide a wider opening. If passage is to be provided for bulky items or wheelchairs (3/4), the diameter should be 3000 mm or more.

Horsehair brushes mounted around the revolving door wings prevent unwanted dust, flies, etc. from entering during door operation without scratching the glass and aluminum.

• Noise level class: Class A (below 70 dB) Protection class: IP 54
• All doors are designed for high traffic loads and operating frequency.
• The system is manufactured in the desired RAL color or anodized.
• The automation unit activates the door by detecting living and non-living objects using two microwave radar detectors,
• rotates it, and ensures it stops at its original position after the movement is complete.

Wing windows and side curved windows are manufactured from 8 mm transparent tempered glass. Laminated or special safety glass materials are used upon request.

• The ceiling is covered with aluminum sheets and can be opened when needed to allow maintenance and inspection of the mechanism section.
• An automatic locking system is available, featuring an electromechanical locking system resistant to wind and storms.
• An access system for elderly and disabled individuals is available at the entrances and exits.
• There is a system that allows the door to stop immediately in an emergency using the emergency safety button and the door wings to be turned by pushing them manually.
• Electronic safety systems (4 heel sensors and 2 edge column sensors) are available.
• It can also be used manually in the event of a power failure.

The difference between Automatic Revolving Doors and Manual Revolving Doors is the sensors located at their entrances and exits. These are the most practical products, powered by a motor mechanism and equipped with smart security systems, ensuring energy savings as well as safety during human passage.

A touch screen (HMI) is required. A PLC CONTROLLER with a unique MAC address allows remote access through the necessary settings and PORT routing. Furthermore, since temporary or permanent error codes can be viewed on the HMI screen, troubleshooting is simplified by addressing the error code displayed on the screen without wasting time.

HARDWARE SPECIFICATIONS;
